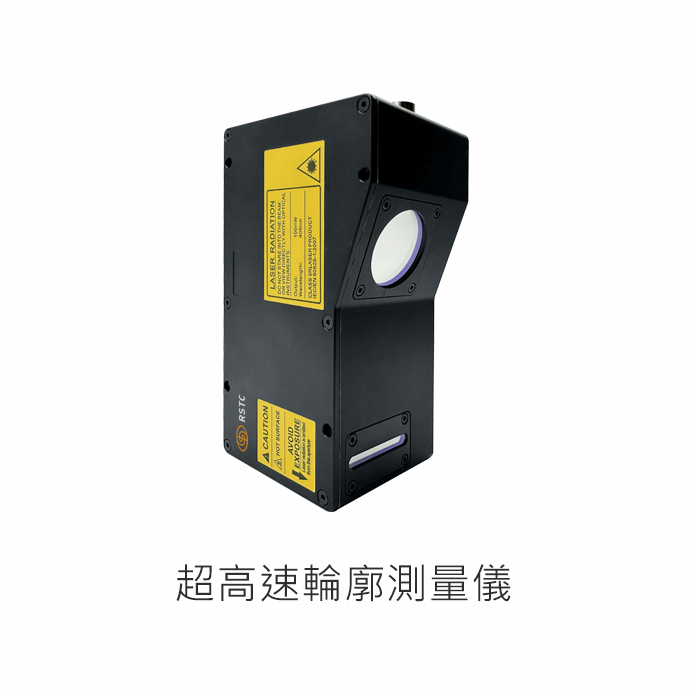

RGX-6300 High-Speed 3D Laser Line Profile Sensors (Measuring Range (CD) 220mm)

RSTC all-in-one high-speed 3D laser line profile sensors provide complete 3D inspection from onboard the sensor head (including scan, measurement and control) all within the sensor itself, scanning speeds from 2500 to 64000Hz and it can work on dark, specular etc material surfaces for inline inspection.

Advantages

  • Fast scan speed, with a full frame of 2500Hz to maximum 64000Hz with windows open.
  • The type of 3D machine vision products are complete, and the 3D line laser profile sensors automatically cover a wide range of vision X,Y and Z direction.
  • 3D laser profile sensor with high precision measurement: Real-time height, widths and length measurements using laser triangulation.
  • Adopting a linear laser scheme, it has strong environmental adaptability and does not rely on physical texture, overcoming the problem of poor imaging quality in edge areas.
  • Every factory deserves smart 3D laser profile sensor, effectively improving work efficiency and reducing products defect rate, ultra compact for easy system integration.



Features:

  • 3D measurement software platform
  • Full field 2500Hz
  • 3200 point ultra high resolution
  • Z-direction repetition accuracy can reach 3 μm
  • X-axis minimum data interval is 89 μm



Parameters

RGX-6300
Measuring Range (CD)220mm
Z-axis Height (MR)252mm
X-axis (Width) :Proxima120mm
X-axis (Width) :Reference Distance174mm
X-axis (Width) :Remote288mm
Light Source Wavelength405mm
X-axis Contour Points3200
X-axis Data(Width)89 μm
Linear Z axis (Height)±0.05% of MR
Repeatability Z-axis (Height)3 μm
Scan Speed (Hz)2500-64000Hz(The maximum frame rate in full field of view is 2500)
I/O Interface2 groups input interfaces (1 group scan control input,1 external trigger control input), 2groups programmable output interfaces
Encoder Interface1group 5V differential encoder input
Data Communication InterfaceGigabit Ethernet
Power24V DC ±10%
Operating Temperature0℃ ~ 45℃
Storage Temperature-20℃ ~ 70℃
Working Humidity35% ~ 85% non-condensing
ESD ProtectionContact discharge ±6kV, Air discharge ±8kV
EFT Protection2kV
Punch15G Half-sine wave, lasting 11ms, wave once positive and negative directions of X, Y and Z individually
VibrateFrequency 10 ~ 55Hz, Bidirectional amplitude 1.5mm
IP RatingIP65
Data Cable (Wiring) ModelStandard aviation plugs 3m, other length is optional
Dimensions (mm)168mm*100mm*72mm, include connector 183mm*100mm*72mm
Package Dimensions(mm)280mm*230mm*155mm
Net Weight(g)1220g
Package Weight(g) 2450g



Applications Detection Picture



Software Interface Picture





3D Point Clouds Picture





Structural Diagram
