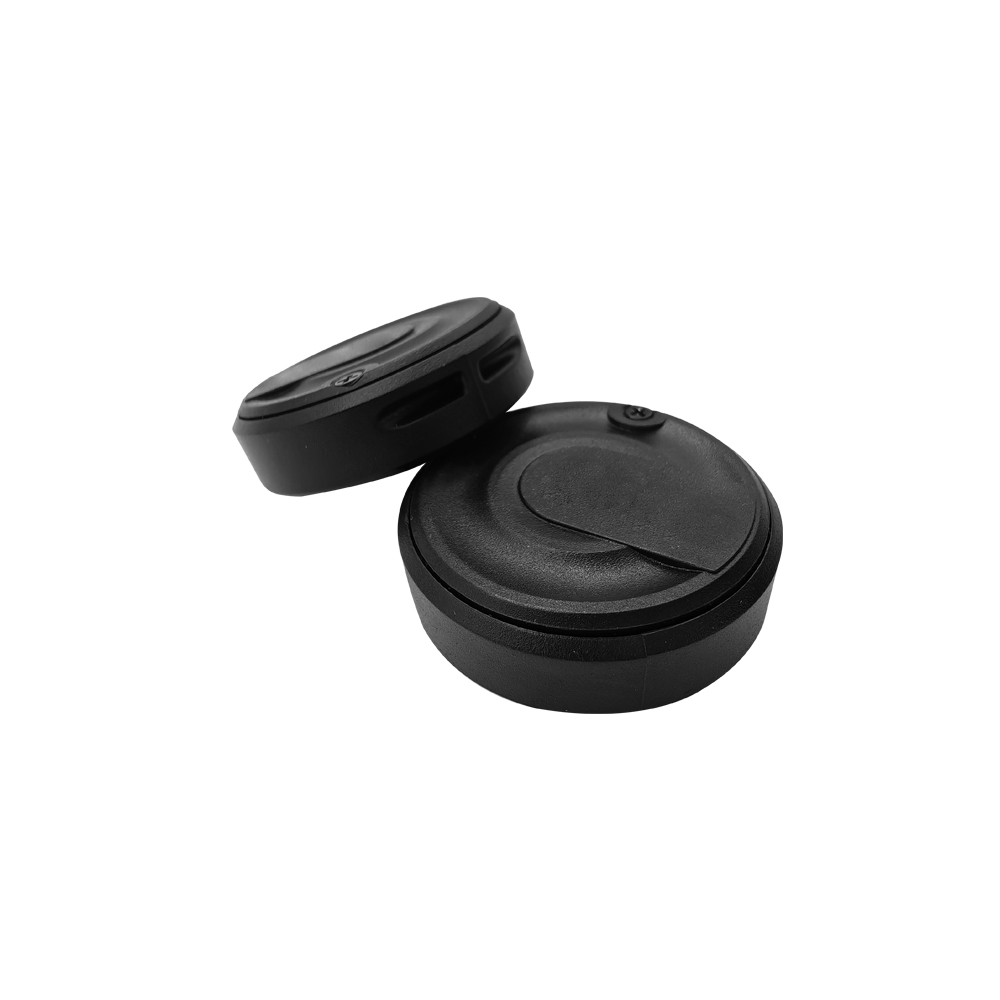

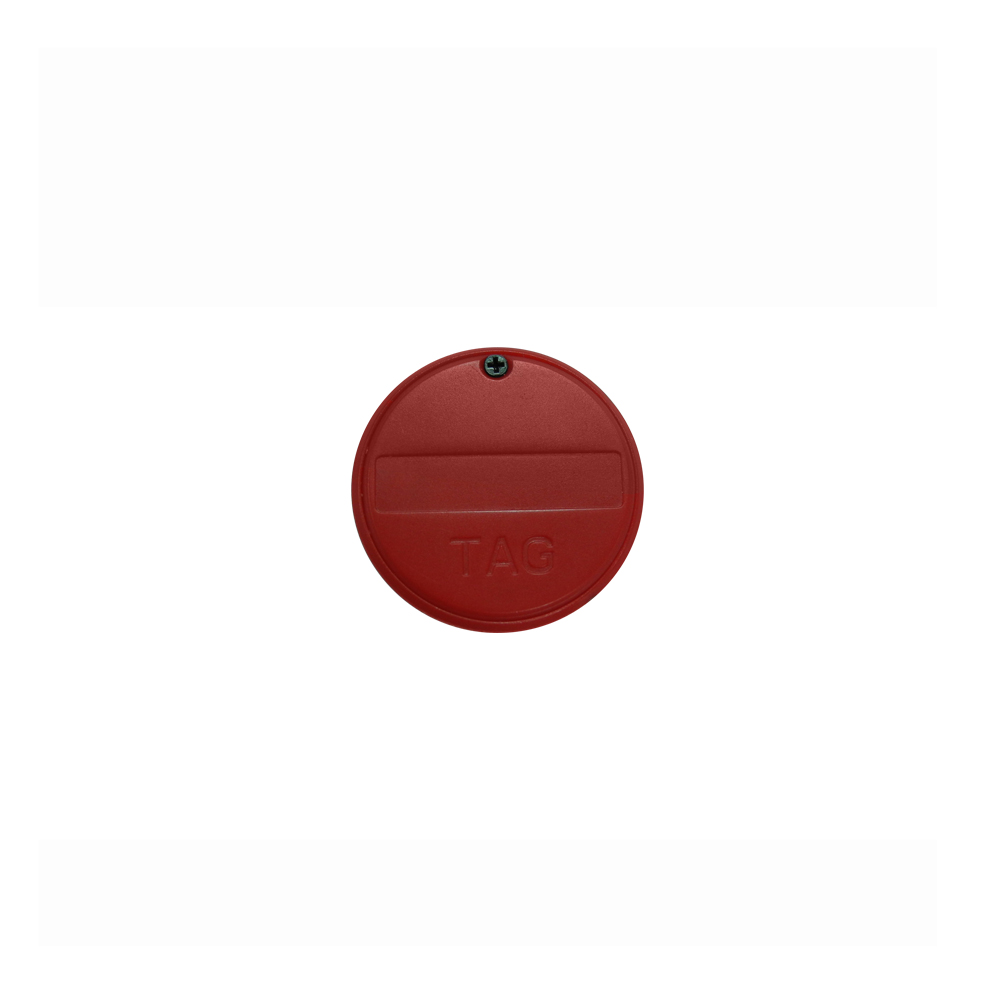

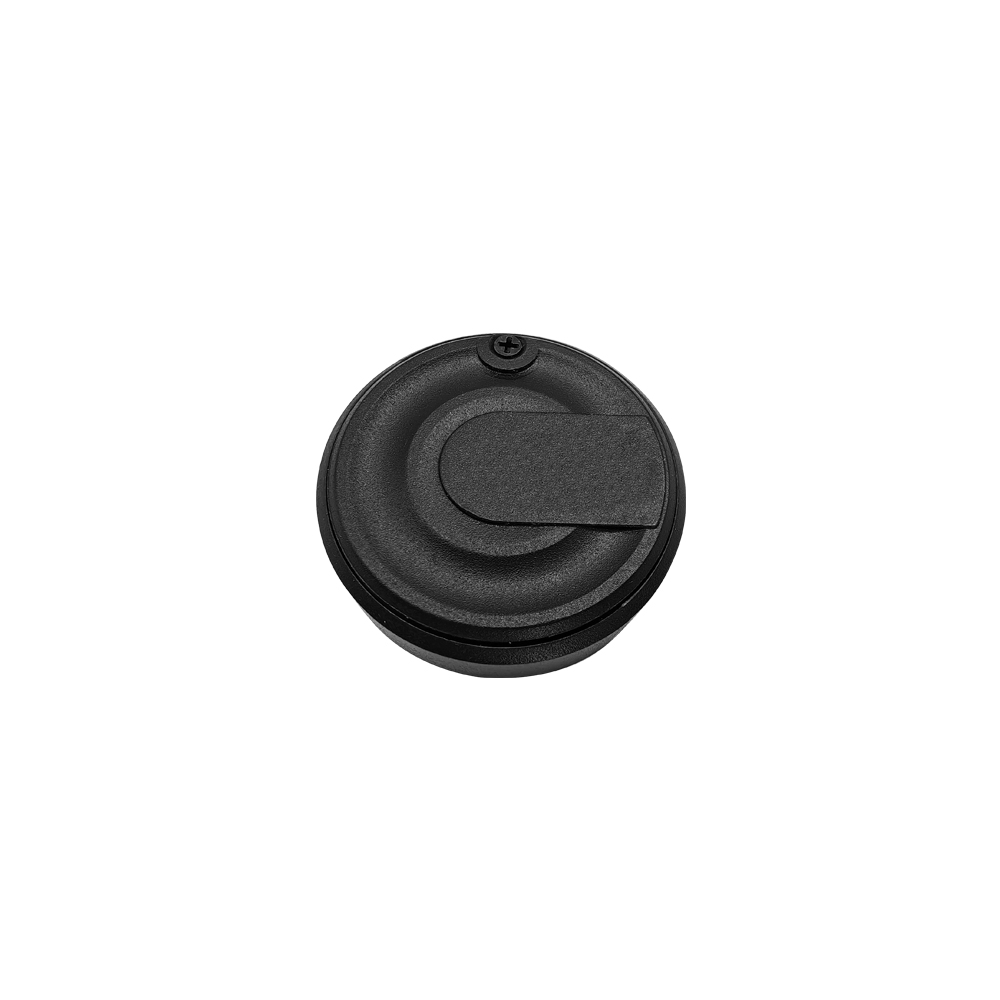

RS-AT10 Mini 2.45GHz Active RFID Tag（Coin/ Button Type）
RS-AT10 2.45 GHz Coin/Button Size 2.45GHz Active RFID Tag operates in the 2.4GHz ISM band, it is small and round shape, which is suitable for asset management, personnel access monitoring and other integration.
Functions
- Exclusive low- power consumption, longer working time
- Battery replaceable
- Permanent 4-byte basic ID
- Active operating model( read only)
- Hole on shell and with adhesive, it is convenient for installation
Parameter
RF Parameters | |
Operating Frequency | 2.4-2.48GHz |
Output Power | -6dBm |
Basic Parameters | |
Basic ID | 4-byte |
Operating Mode | Active operating mode |
Signal Interval | 500ms/time(can be customized) |
Battery Life | 2–year life (related with the operating mode and output power), battery replaceable |
Reading Distance | 0-60M (operating with RS-AR01, test under open environment) |
Mechanical & Electrical performance | |

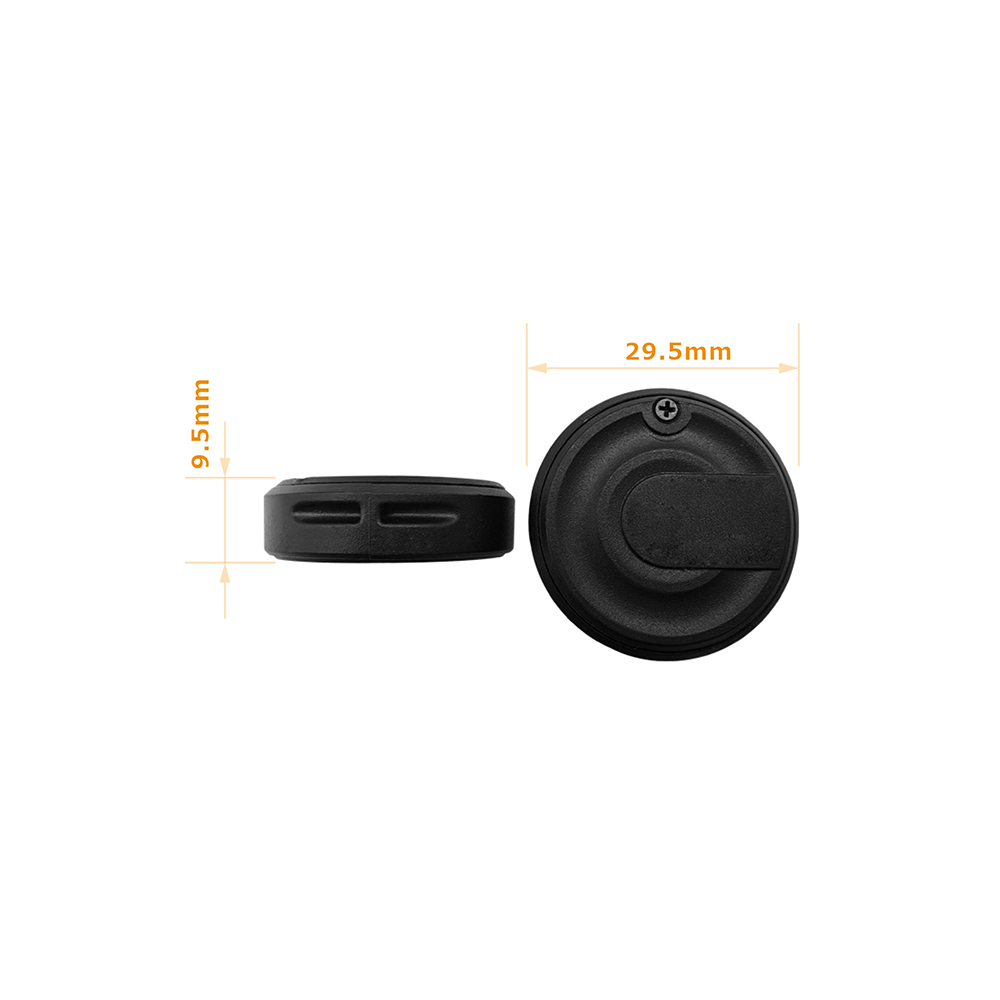

Dimensions | Φ29.5mm × 9.5mm |
Weight | 7g |
Operating Temperature | -40℃~+60℃ |
Storage Temperature | -60℃~+80℃ |
Humidity | 5% ~ 95% (non-condensing) |
IP Rating | IP50 |
Shock Resistance | 10~2000Hz, 20mm/15g, Triaxial |
Our Services
Wondering if our RFID Solutions can suit you? Finding out is simple.
- We are offering free testing onyour sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.

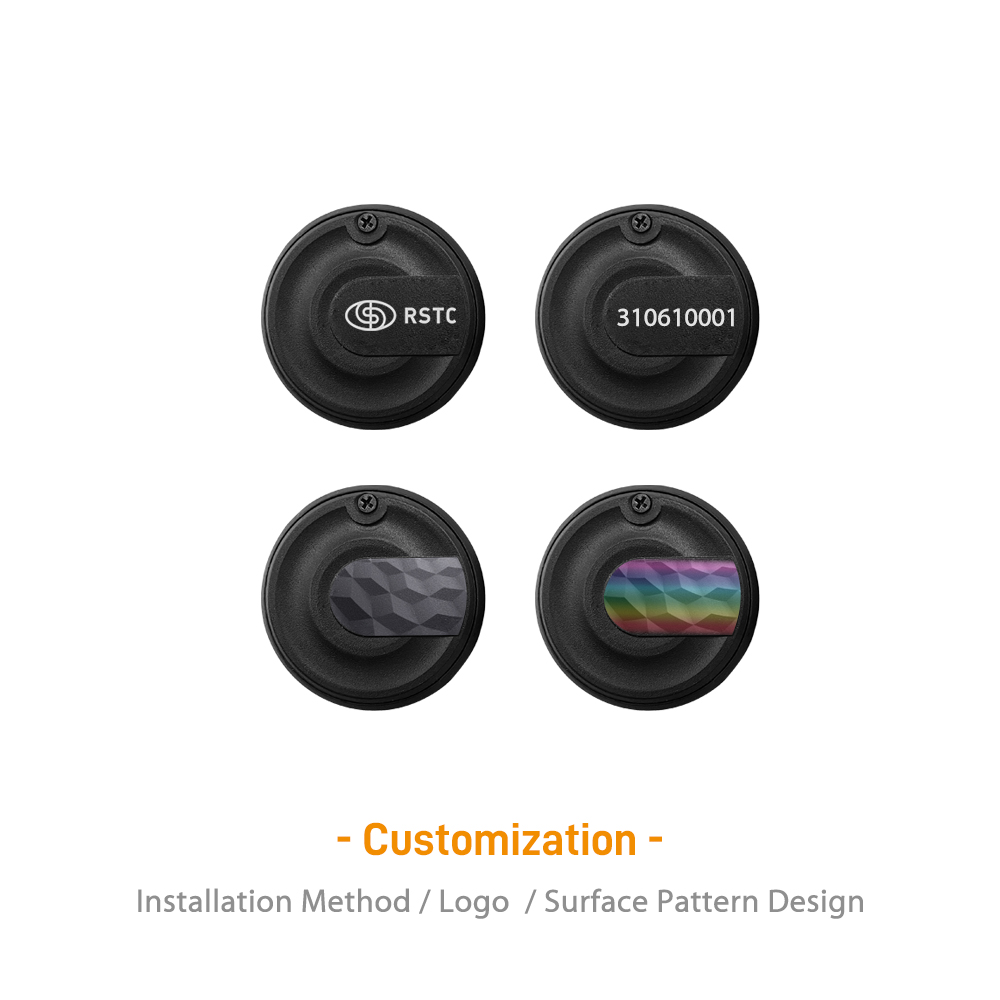

- We provide personalized customization services, such as printed logo, software and hardware customization etc.
