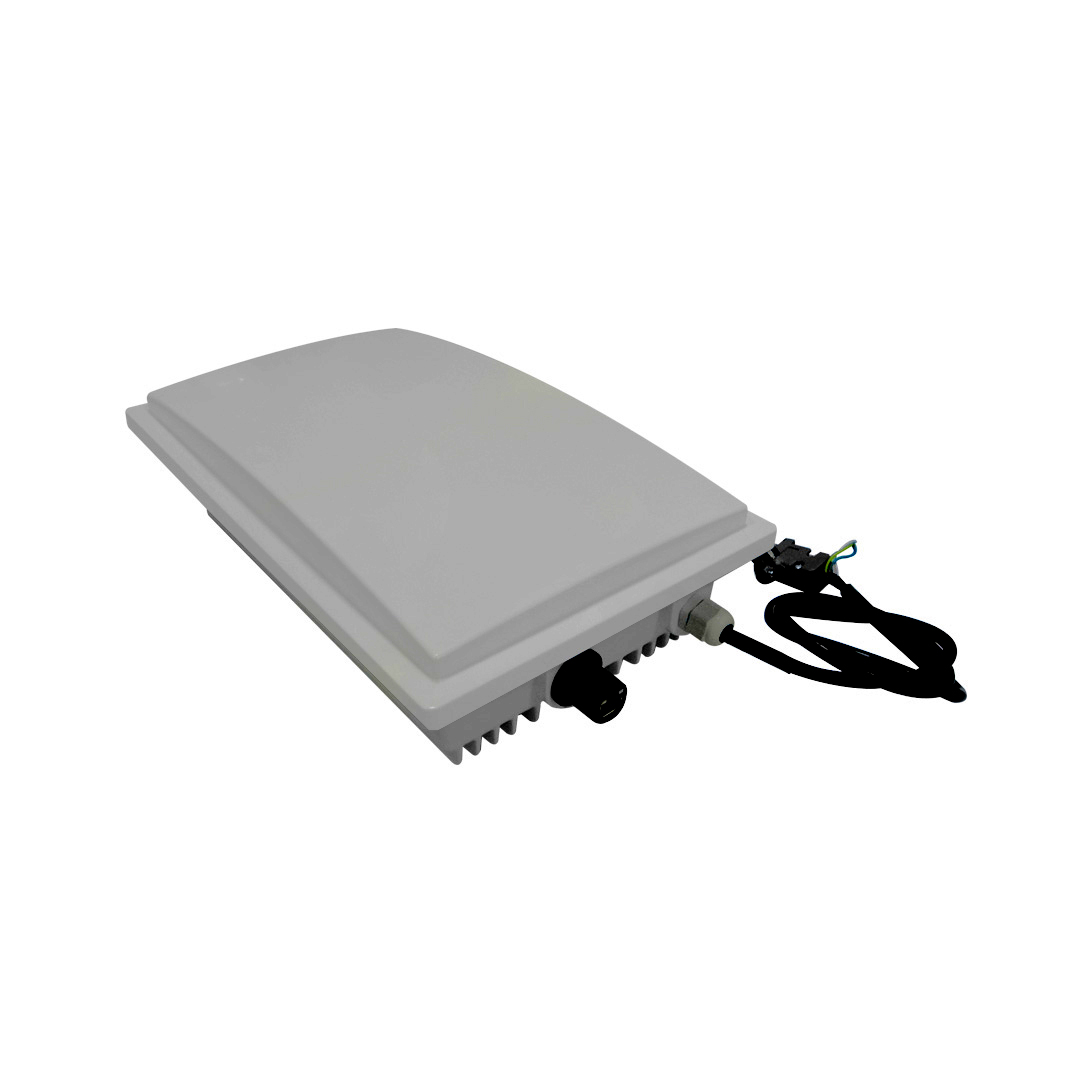

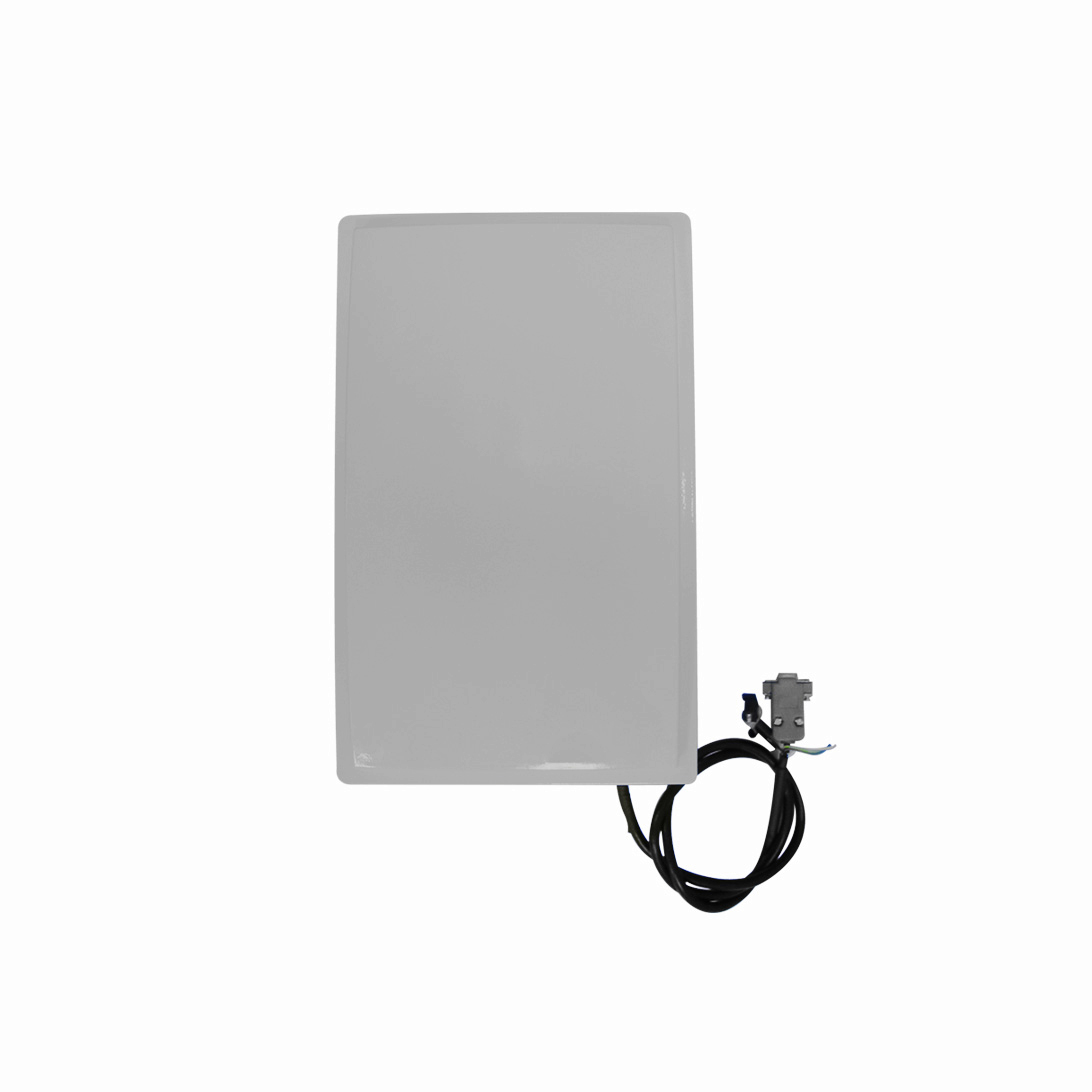

RS-AI02 2.45GHz Active Integrated Reader
TheRS-AI02 has the features of high identification and reliability, strong expandability, etc. The read range is adjustable within 0~180 meters.
Functions
- ISM 2400-2480Mhz Working Frequency, Private Protocol
- Reading Radius 0-180m in Open Area, Range Adjustable by Software
- Build-in 15dBi Antenna
- Support RS-232, RJ45 Communication Ports
- Support GPIO
- Support C#/C++ API
Specifications
RF Parameters | |
Operating Frequency | 2.4-2.48GHz |
Power Output | Max +20dBm, step -6dBm (adjustable by software) |
Sensitivity | -95dBm |
Communication Interfaces | RS-232, RJ45 |
Optional Interfaces | RS-485, Wiegand 26/34 |
I/O Port(optional) | 2- channel relays output, 2- channel trigger input |
Firmware Upgrade | Support serial port or network port |
Application Software Platform | Provide development kit of API (C++ and C#) |
Tag operation | |
Tag Protocol | Private Protocol |
Tag Operating Mode | Compatible with active and passive operating mode tags |
Reading Range | 8-260m (outdoor line of sight distance test, actual reading distance depends on antenna type, environment, tag type) |
Identification Speed | 300pcs/s (tag ID) |
Anti-confliction | Identifying 300pcs tag at the same time |
Mechanical & Electrical performance | |
Indicator | Buzzer |

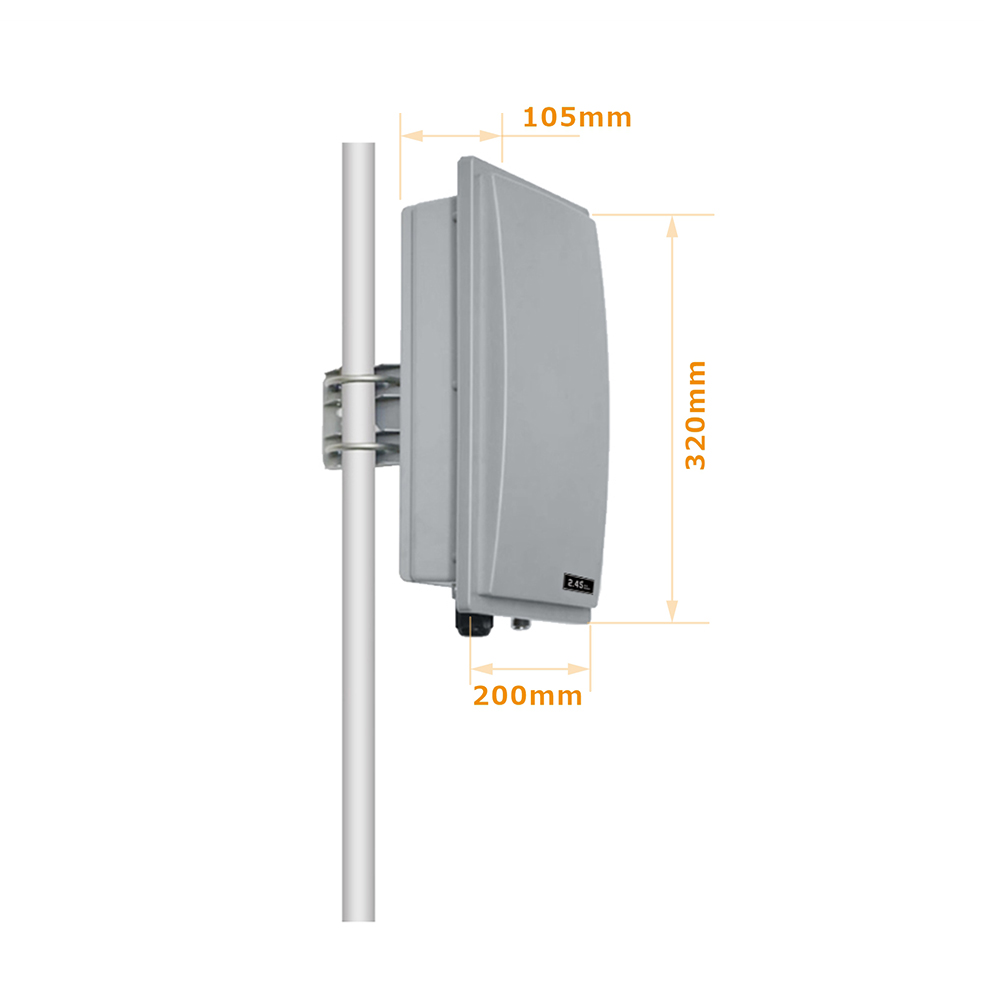

Product Dimensions | 320mm × 200mm × 105mm |
Package Dimensions | 390mm × 240mm × 130mm |
Net Weight | 1.85kg |
Gross Weight | 2.78kg |
Power Supply | DC5V, 6A；PoE optional |
Power Consumption | Standby 200mW; Working 400mW |
Operating Temperature | -40℃~+60℃ |
Storage Temperature | -60℃~+80℃ |
Operating Humidity | 5% ~ 95% (non-condensing) |
IP Rating | IP65 |
Accessories | Bracket, power adapter |
