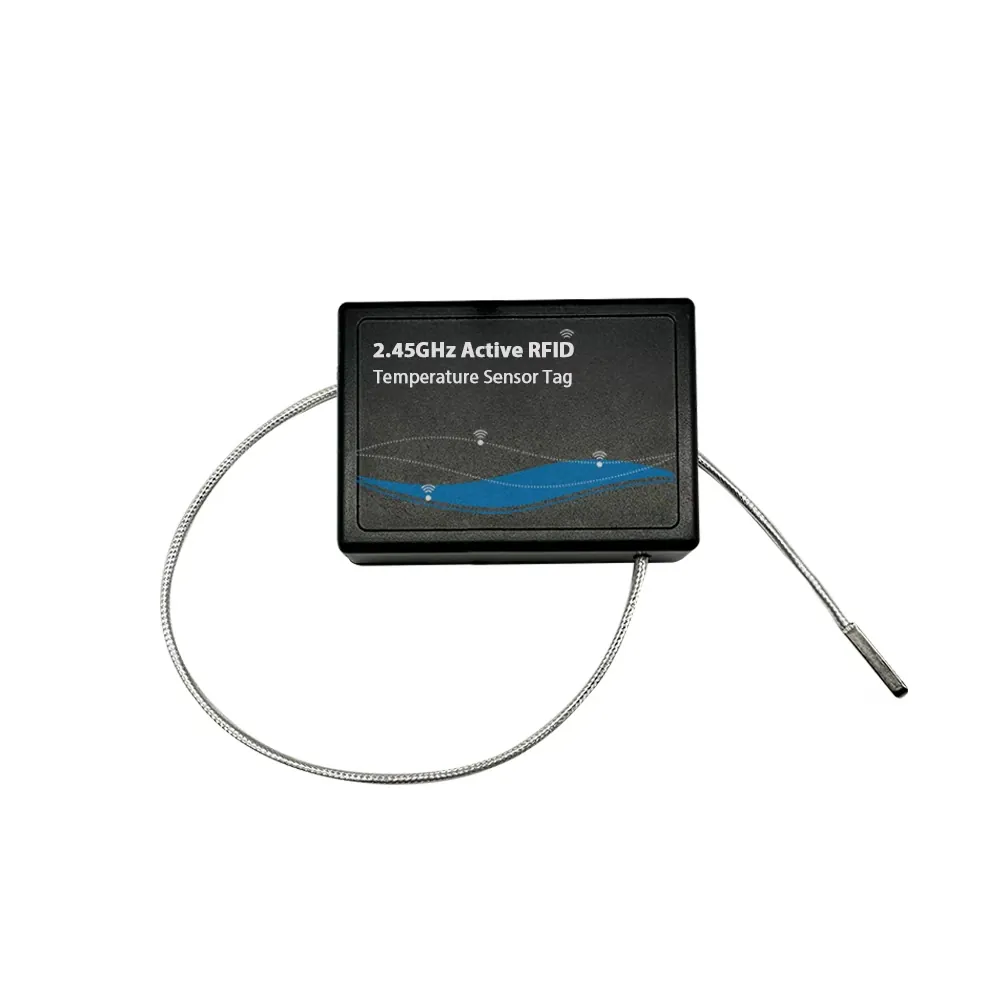

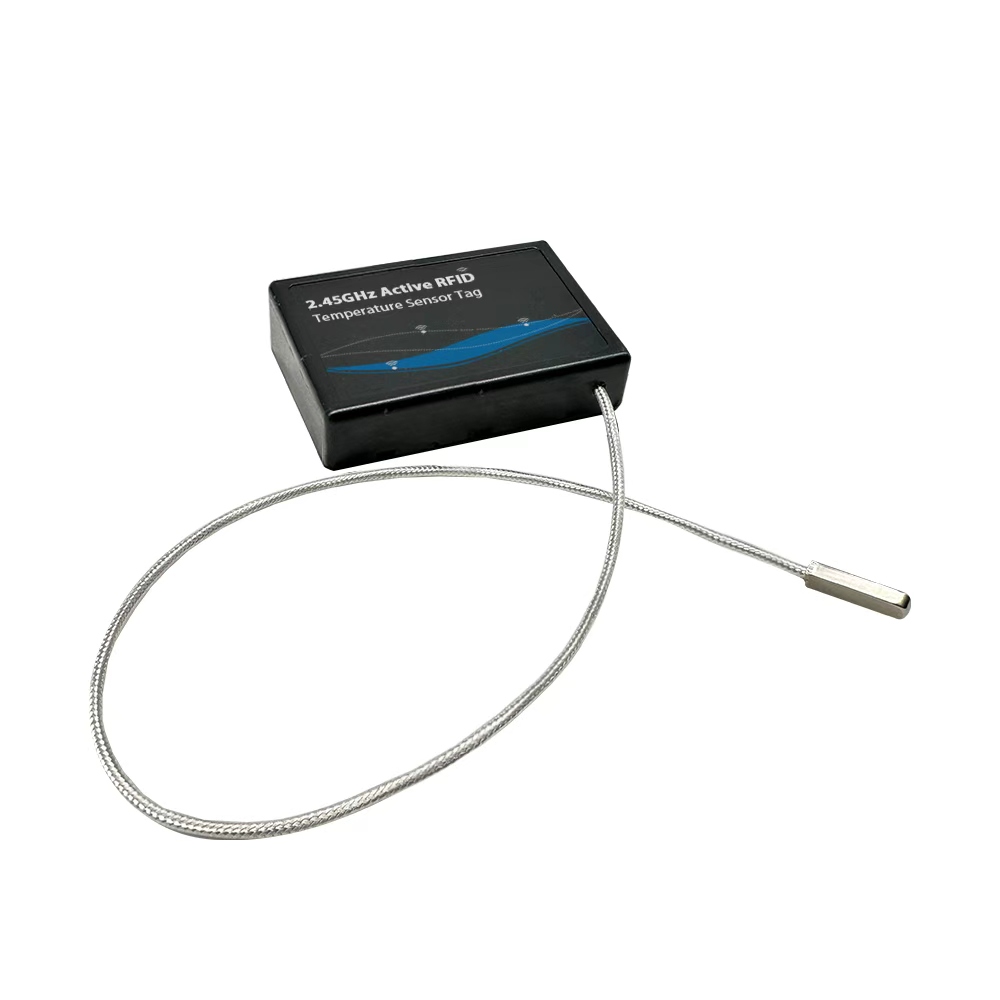

RS-AT11 2.45GHz RFID Active Temperature Sensor Tag
RS-AT11 is an RFID active electronic tag operating in the 2.45GHz frequency band, with an external temperature sensor for more accurate measurement of object and environmental temperature and send the data in real-time.
Functional Characteristics
- Low-power consumption design.
- Long battery life.
- Supports 8-byte basic ID.
- High impact strength PVC engineering plastic shell.
- Instantly collect and send target temperature data, with temperature measurement accuracy of ± 0.2 ℃.
Parameters
RFID Features | |
Operating Frequency | 2.4-2.48GHz |
Output Power | 0dBm |
Sending Interval | 1s/time (can be customized) |
Reading Distance | >80 meters (Open environment) |
Measurement Range | 0 ℃~+210 ℃ |
Measurement Accuracy | ±2℃ |
Physical Features | |
Dimensions | 55mm×58mm×20mm |
Weight | 75.6g |
Working Temp | -30℃~+70℃ |
Storage Temp | -40℃~+80℃ |
Tagging | Sewing, Insert |
Working Humidity | 5%~95% (Without condensation) |
Sensor Type | PT100 platinum resistance temperature sensor |
Probe Wire | Three core silver plated PTFE mask wire |
Wire Length | 30cm (can be customized) |

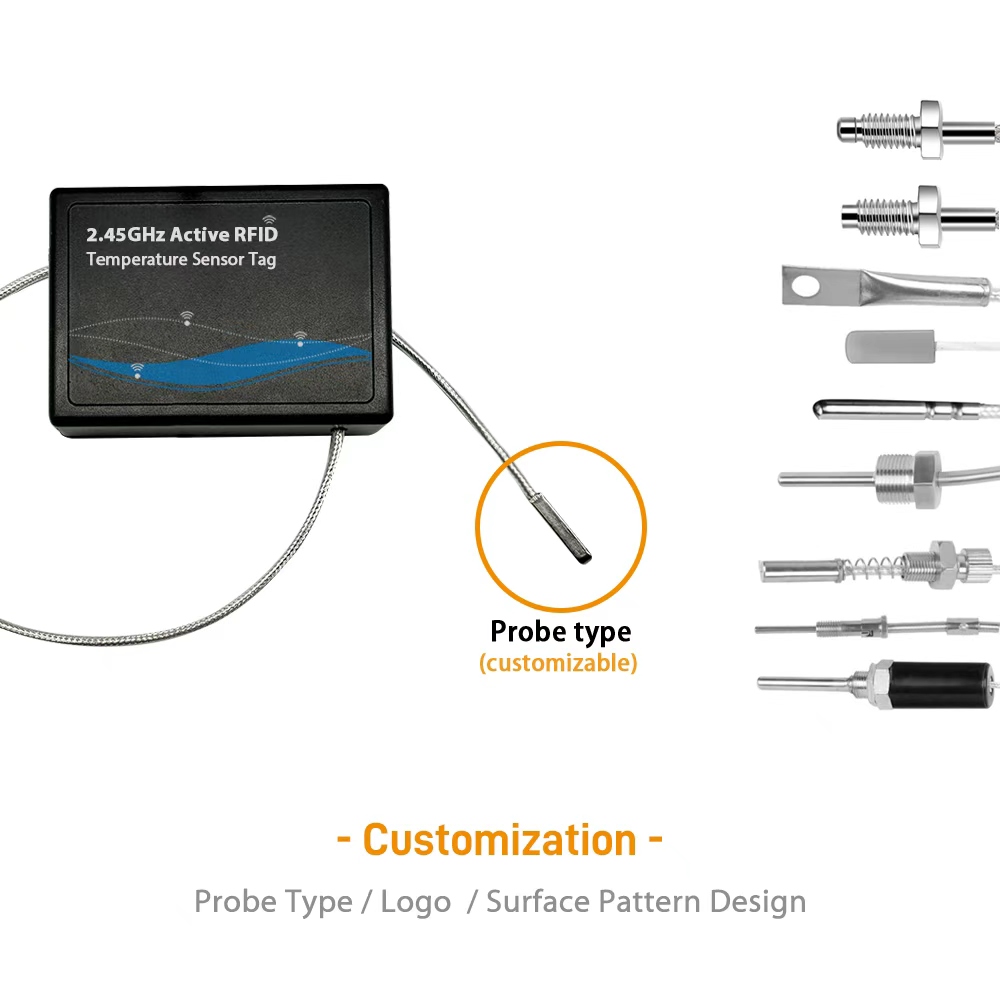

Probe Type | Square (can be customized) |
