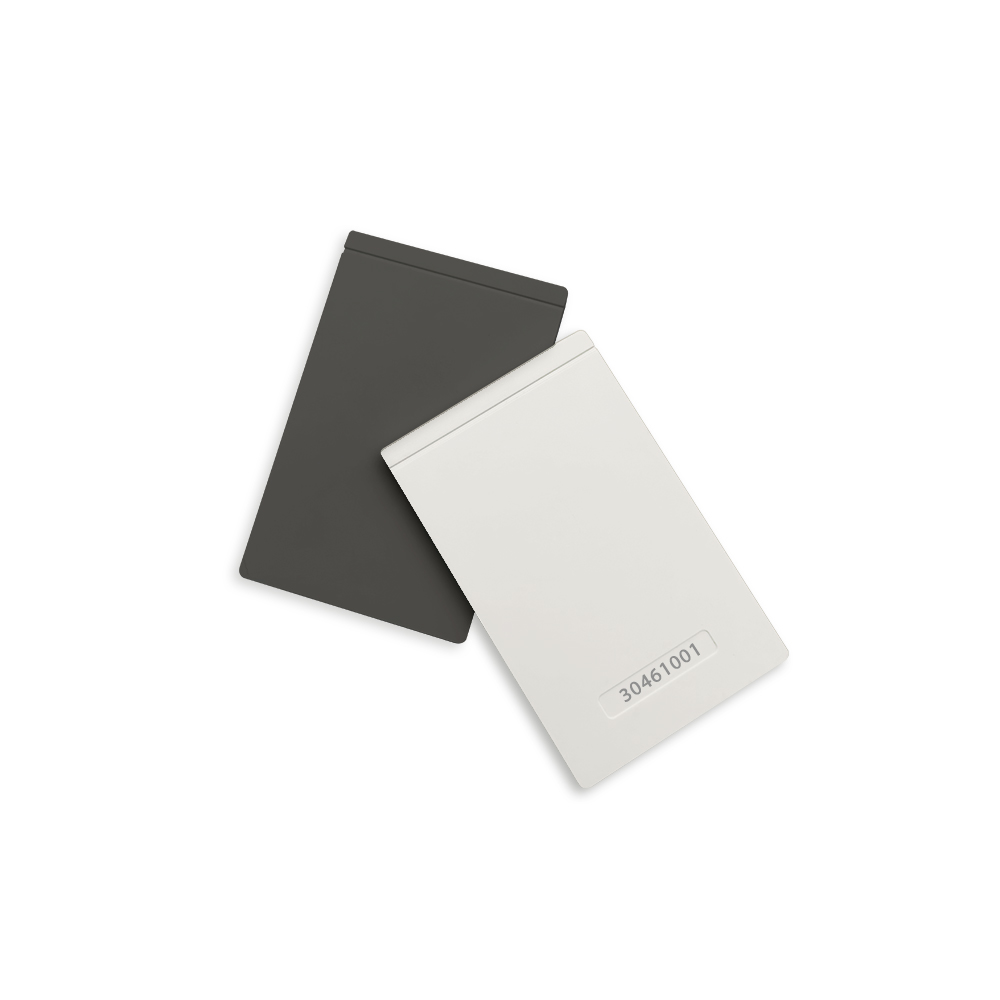

RS-AT04 Rugged 2.45GHz Active RFID Card
RS-AT04 rugged 2.45 GHz active RFID card operates in the 2.4GHz ISM band, based on high IP67 rating water-proof design, it can be widely used for outdoor applications like pallets tracking, boats management, asset tracking, tooling identification etc.
Functions
- ISM 2.4-2.48Ghz Working Frequency
- Unique Low Power Consumption and High Capacity, Wide Temperature Tolerance Battery Design, Support Longer Working Time.
- Active Working Mode, Around 120m Reading Distance Adjustable
- Battery Low Alarm
- IP67 Water-Proof Design
Parameters
Performance Indexes | |
Working Frequency | 2.40GHz~2.48GHz, default value is 2.48GHz |
Signal Interval | 1s/time (can be customized) |
Communication Speed | 1Mbps |
Output Power | -13-+7dBm (default 0dBm) |
Tag ID | 4 byte |
Working Mode | Active |
Reading Distance | 0-120m (open area, reader antenna type matters) |
General Parameters | |
Operating Temperature | -20℃~+60℃ |
Storage Temperature | -25℃~+65℃ |
Humidity | 5%~95% (non-condensing) |
Battery Life | ≥2-year life (related to signal interval and RF power) |
Material | ABS+PC |
Dimensions | 90mm × 57mm × 5mm |
Weight | 34g |
IP Rating | IP67 |
Our Services
Wondering if our RFID Solutions can suit you? Finding out is simple.
- We are offering free testing on your sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.

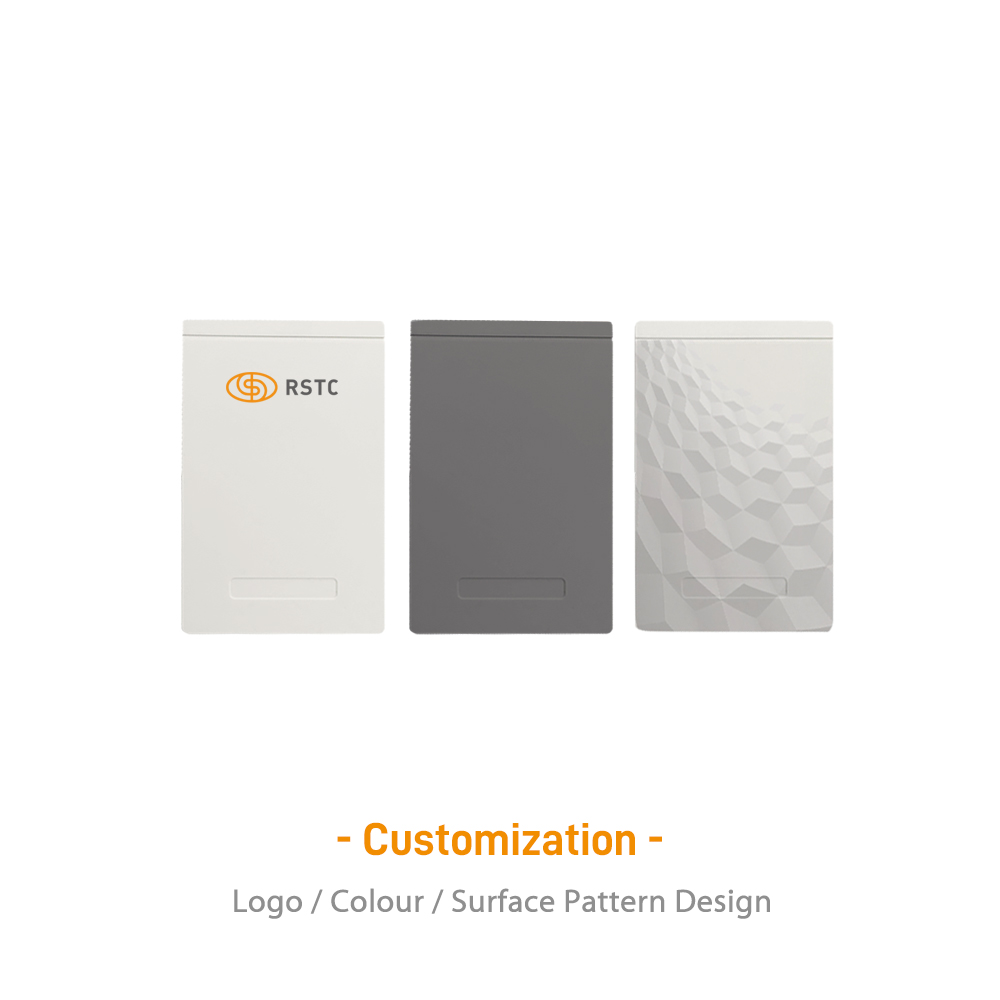

- We provide personalized customization services, such as printed logo, software and hardware customization etc.
Our Services
RSTC provides application testing, product customization, and technical support to help select and deploy suitable RFID products.
Application Testing
Test RFID performance with customer-provided samples and actual application requirements.
Product Customization
Support selected hardware, software, printing, logo, and accessory requirements.
Technical Support
Assist with product selection, system compatibility, integration, and project deployment.
