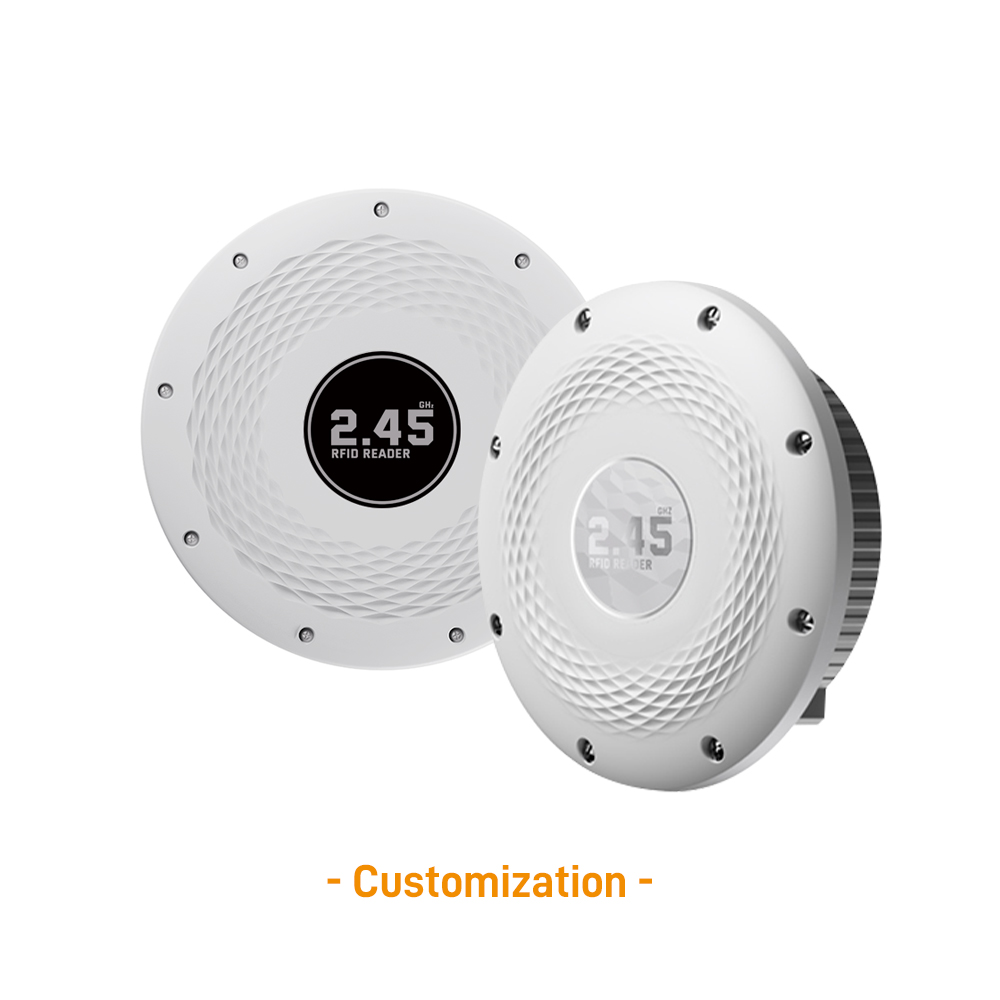

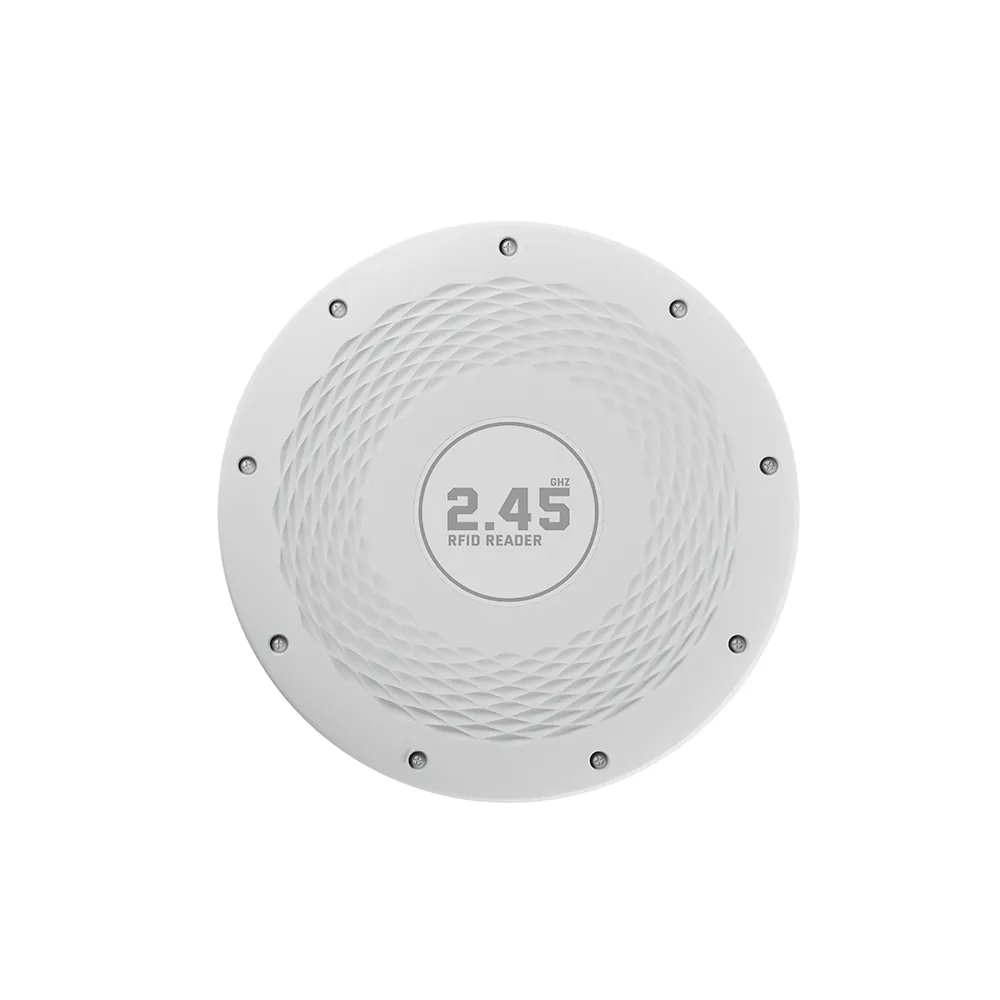

RS-AI01 Fixed 2.45GHz Active Circle Outdoor RFID Reader

RS-AI01 Key Features

• Software-Adjustable Read Range: Configure the reading distance from 0 to 120 meters based on tag output power and deployment requirements.
• High-Speed Multi-Tag Identification: Identify up to 300 tag IDs per second and process up to 300 tags simultaneously.

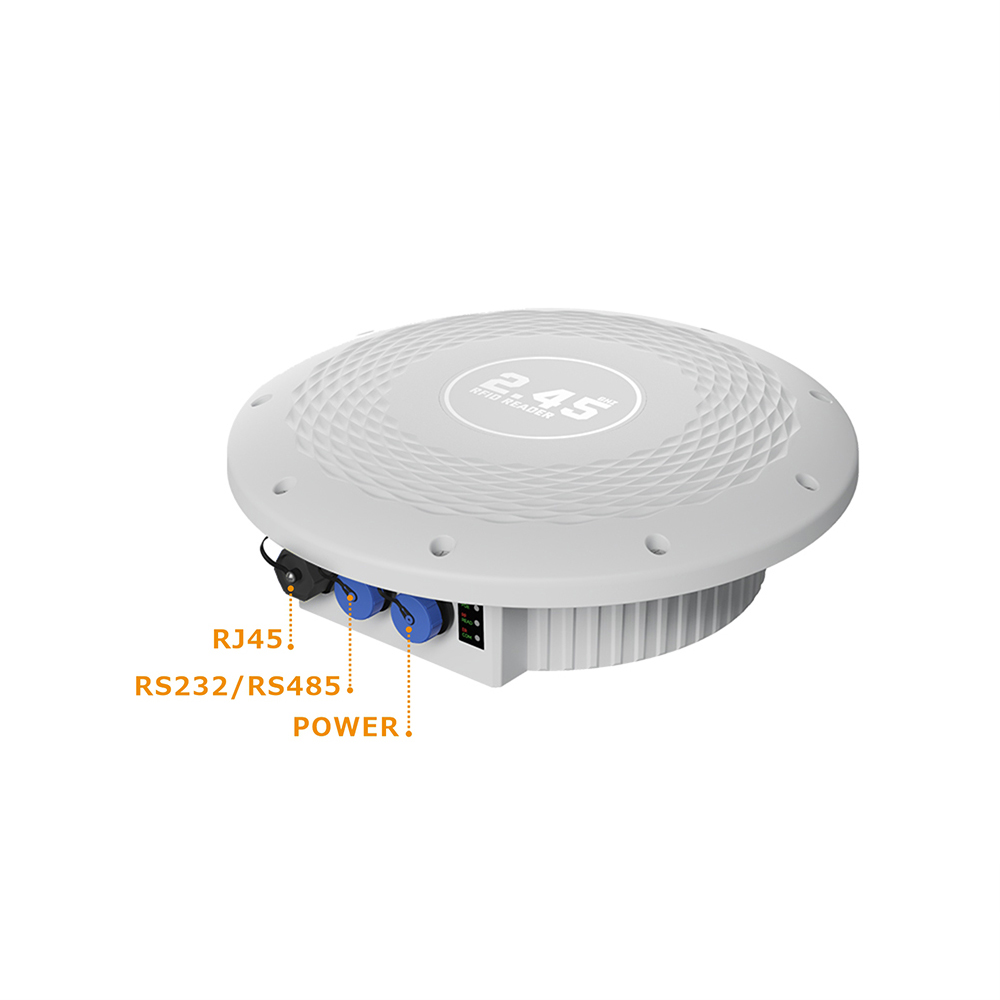

• Flexible Communication Interfaces: Supports RS-232 and 10/100M Ethernet, with optional RS-485, Wiegand 26/34, and customized interfaces.
• Flexible Trigger and I/O Control: Optional relay outputs and trigger inputs support command-triggered, timed, and external-triggered operation.
• Multi-Reader Deployment: Supports stable operation when multiple RFID readers are installed in dense deployment environments.
• Easy System Integration: Firmware can be upgraded through serial or network connections, with C++ and C# API development kits available.
• Outdoor-Ready Design: The IP67-rated enclosure and −40°C to +60°C operating range support fixed installation in outdoor and demanding environments.

RS-AI01 Applications in Harsh Environments

The RS-AI01 is designed for fixed, long-range RFID identification in demanding indoor and outdoor environments. Its adjustable read range, high-speed multi-tag processing, IP67-rated enclosure, and wide operating temperature range support reliable deployment in transportation facilities, manufacturing sites, tunnels, ship compartments, and other challenging locations.

Transportation Management Identify tagged vehicles, equipment, tools, or personnel across train depots, maintenance yards, and transportation facilities. Long-range automatic identification helps improve movement visibility and reduce manual checks across large operating areas.	Manufacturing and Industrial Management Identify tagged equipment, materials, tools, or personnel across factories and industrial facilities. The fixed RFID reader supports continuous data collection in environments exposed to dust, moisture, vibration, temperature changes, and other demanding operating conditions.	Confined Space Management Support personnel, equipment, and asset identification in tunnels, ship compartments, and other enclosed areas where access, visibility, or manual inspection may be limited. Contactless RFID identification helps improve operational visibility in complex and difficult-to-access environments.

Specifications

RS-AI01 Fixed RFID Reader FAQ

What is the reading range of the RS-AI01, and can it be adjusted?

The reading range is software-adjustable from 0 to 120 meters. Actual performance depends on tag output power, reader configuration, installation position, surrounding structures, and signal conditions.

Which RFID tags are compatible with the RS-AI01?

The RS-AI01 operates at 2.4–2.48GHz and uses a private communication protocol, so tag compatibility should be confirmed by model and protocol before deployment. It should not be assumed to work with standard 860–960MHz passive UHF tags simply because both products use RFID technology; readers and tags need compatible frequencies and protocols.

Can the RS-AI01 be installed outdoors?

Yes. The RS-AI01 has an IP67-rated enclosure and an operating temperature range of −40°C to +60°C, supporting fixed installation in outdoor and demanding environments. Mounting hardware, power cables, network connections, and exposed connectors should still be protected according to site conditions.

How many RFID tags can the RS-AI01 identify?

The reader supports an identification speed of up to 300 tag IDs per second and can identify up to 300 tags simultaneously. Actual performance may vary according to tag transmission settings, reader configuration, signal conditions, and system integration.

Can multiple RS-AI01 readers operate in the same area?

The RS-AI01 is designed to support multi-reader deployment in dense operating environments. Reader placement, output power, coverage overlap, tag transmission settings, and surrounding interference should be evaluated during commissioning to maintain stable performance.

How can the RS-AI01 integrate with an existing management system?

The standard communication interfaces are RS-232 and 10/100M Ethernet. Optional RS-485, Wiegand 26/34, relay outputs, and trigger inputs are available, and RSTC provides C++ and C# API development resources for compatible goods, attendance, and transportation management platforms.
