RS-PT10 RFID UHF EPC Gen2 PVC/PET Card
RS-PT10 RFID UHF EPC Gen2 PVC/PET card is compatible with EPC Class1 Gen2 (ISO18000-6C) standard, operating frequency is 860~960MHz. Each card tag has a unique ID and stores user data. It is designed for people, parking, asset management, etc.
Parameters
Physical Features | |
Material | PET / PVC |

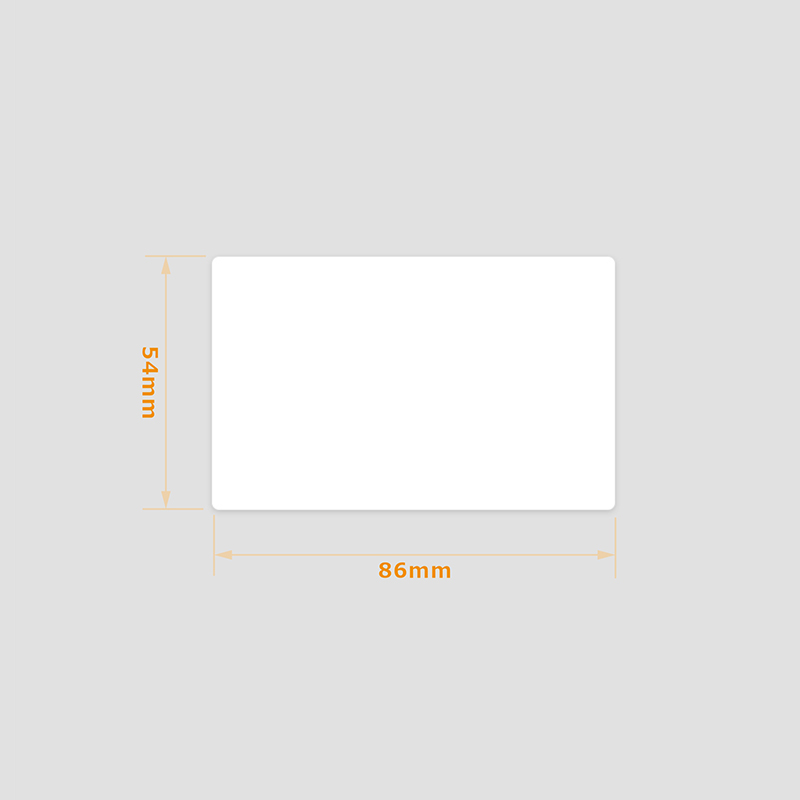

Dimensions | 86×54×0.84mm |
Color | White |
Environment | -25~ +65℃ |
Survive Temp | -40~+85℃ |
Humidity | 98% Non-condensing |
RFID Features | |
Operating frequency | 860-960MHz |
Operation | Passive |
RFID Standard | ISO/IEC 18000-6C (EPC Gen2) |
Chip Type | UCODE G2XM / G2XL / Alien / Impinj Optional |
EPC Memory | 96 bits |
User Memory | 512 bits |
Operating Range | 3~8m (depends on different readers) |
Other Features | |
Re-write | 100,000 times |

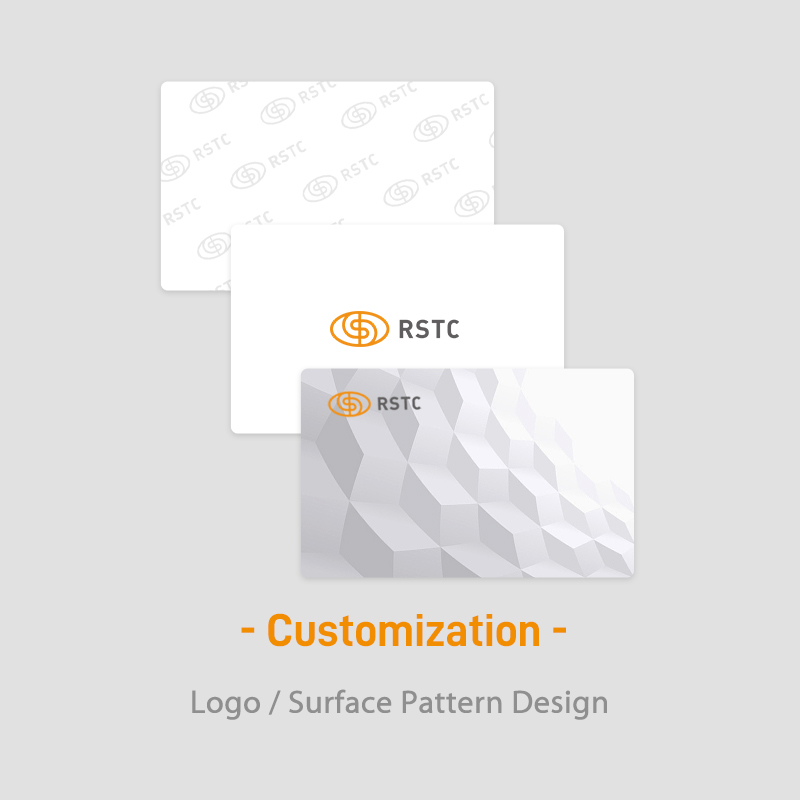

Customization | Pad Printing |
Package | 200pcs/box |
Application | ● Parking System Management ● Production Line Management ● Access Control System |
Applications
 |  |
 |  |
Our Services
Wondering if our RFID Solutions can suit you? Finding out is simple.
- We are offering free testing onyour sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.
- We provide personalized customization services, such as printed logo, software and hardware customization etc.
Our Services
RSTC provides application testing, product customization, and technical support to help select and deploy suitable RFID products.
Application Testing
Test RFID performance with customer-provided samples and actual application requirements.
Product Customization
Support selected hardware, software, printing, logo, and accessory requirements.
Technical Support
Assist with product selection, system compatibility, integration, and project deployment.
