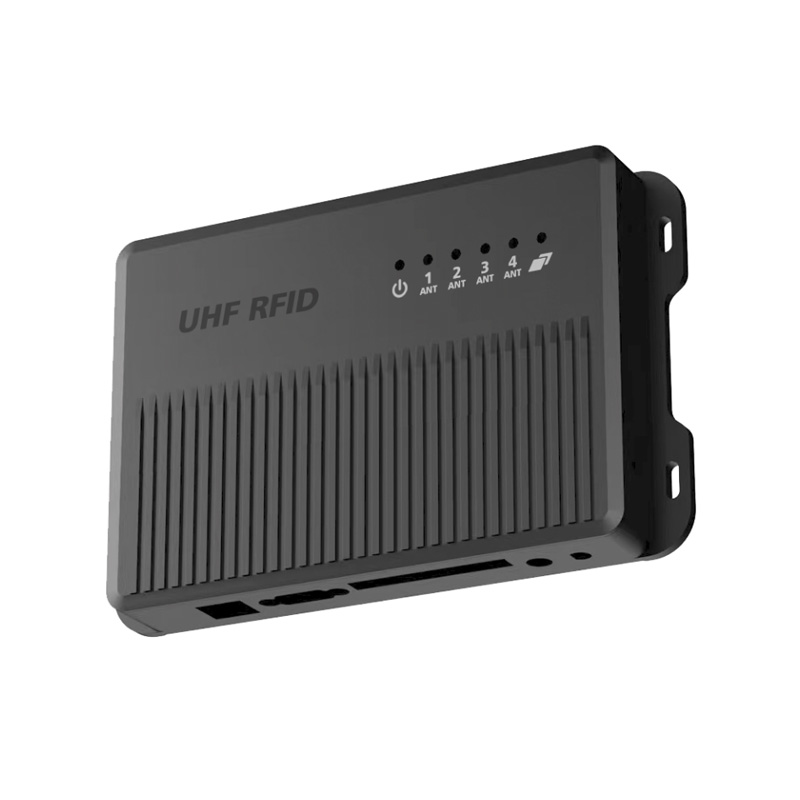

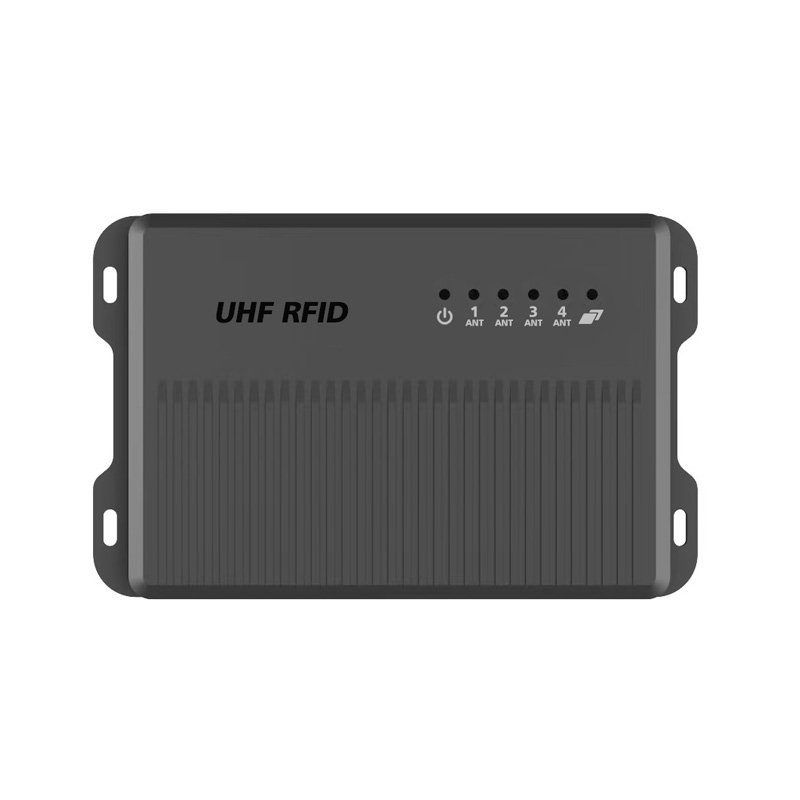

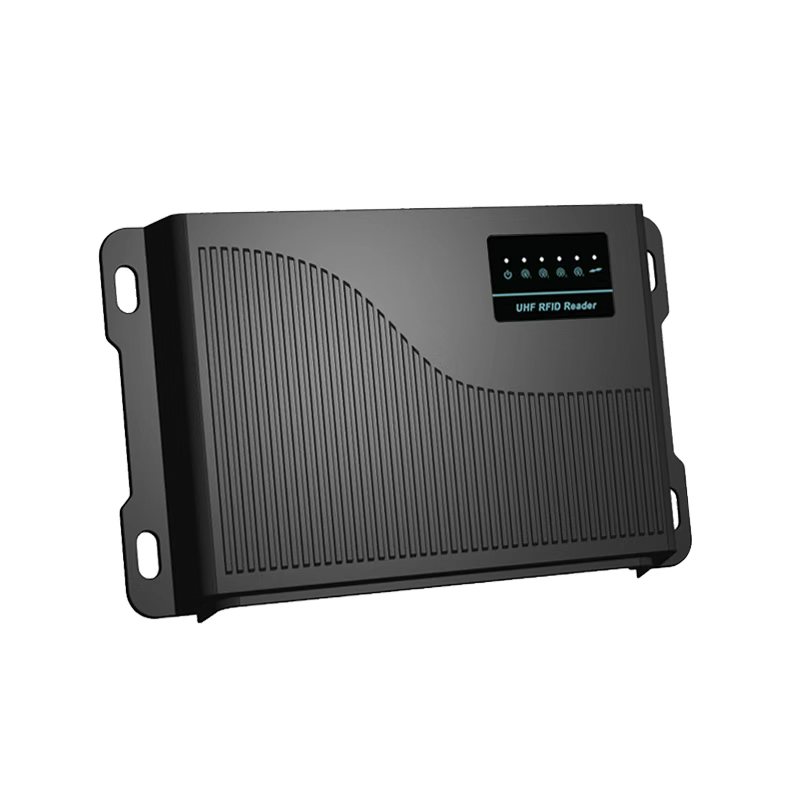

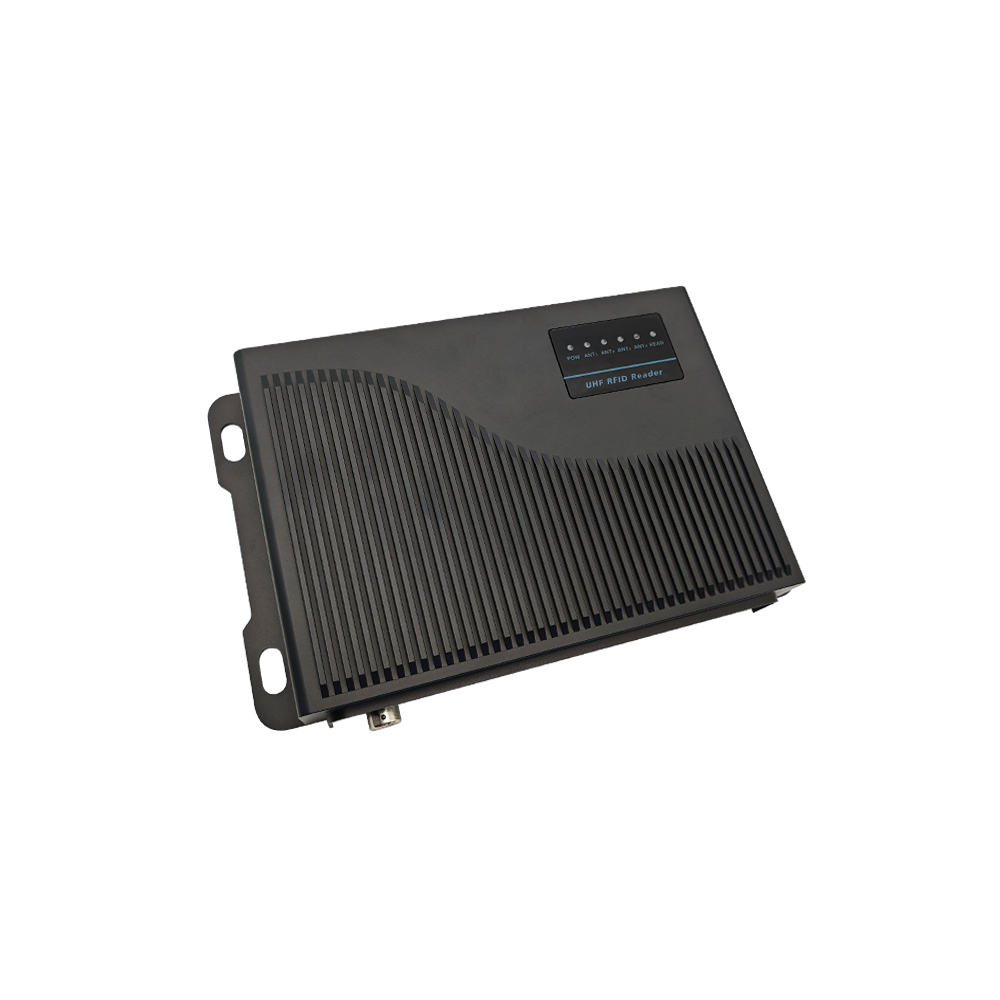

RS-PR03 Fixed Four-port Passive UHF RFID Reader
RS-PR03 is a four-port, long-range industrial-grade RFID reader operating in the UHF band, developed based on the Impinj R2000 chip. The reader is equipped with a Linux operating system and features high multi-tag identification efficiency and stable performance under extreme temperatures.
It is widely used in asset management, warehousing and logistics, library systems, as well as vehicle and personnel management.
Functions
- 902-928Mhz FCC, 866-868Mhz CE, other frequency selectable
- Connect 4 antennas external, SMA connector
- Support standard RS-232, USB, Ethernet communication interfaces
- PoE optional
- Multi-reader operating under intensive environment
- Upgrade firmware online
Applications
- Warehouse, logistics, supply chain management
- Vehicle parking, intelligent weighing
- E-Toll on highway
Specifications
Electrical Specifications | |
Frequency | North America: 902MHz~928MHz Europe: 865MHz~868MHz China: 920MHz~925MHz（optional） |
Frequency Hopping | FHSS or Fixed Frequency |
Protocol | EPC Class 1 Gen 2 (ISO18000-6C) |
Output Power | +20dBm ~ +30dBm@50Ω load, 1dBm each step |

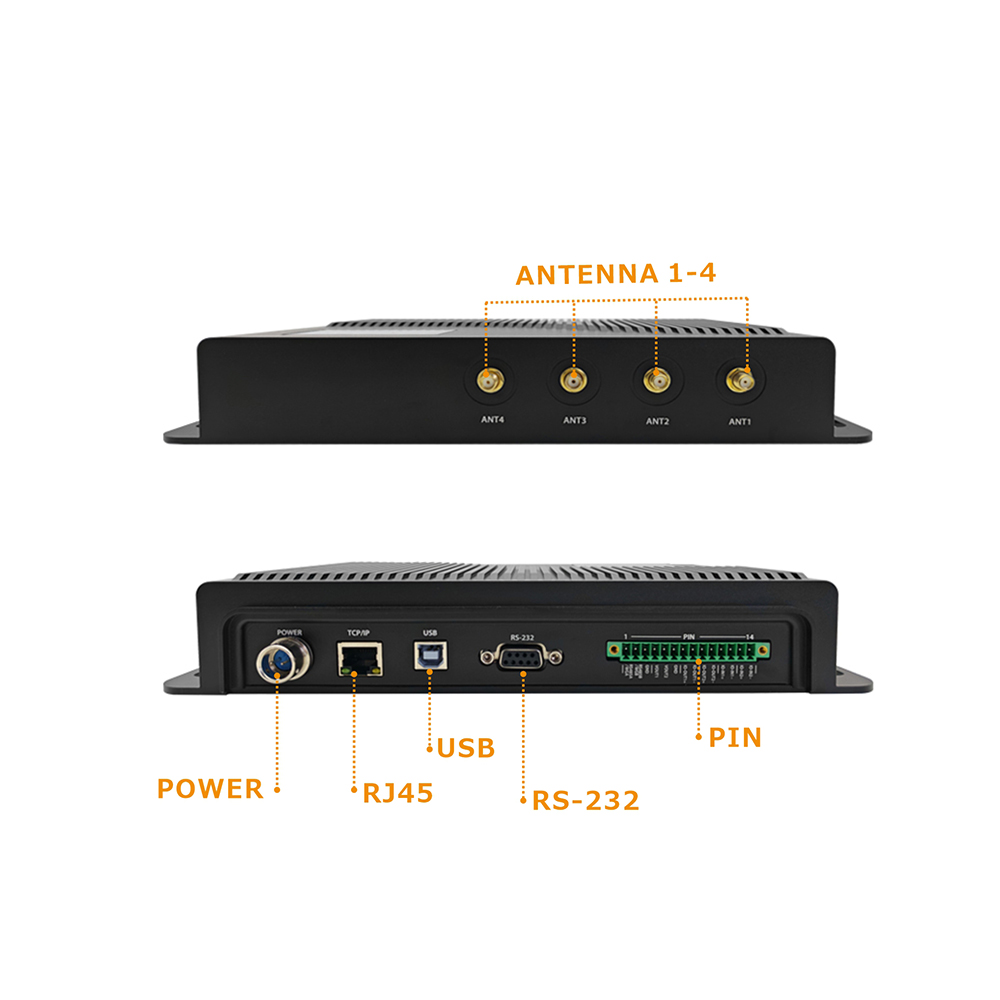

RF Connector | 4 SMA interfaces |
Communication Interfaces | RS-232 / USB2.0 / Ethernet |
Optional Interfaces | RS-485, Wiegand26/34, PoE |
Power Supply | DC 12V input, PoE (optional) |
Input /Output (optional) | 2-channel Relay Output, 2-channel 12V level signal output, 2-channel photoelectric isolation input |
Receive Sensitivity | ＜-70dBm |
Reading Range | 0~15m (depends on antenna configuration) |
Writing Range | 0~5m |
Firmware Upgrade | Ethernet |
Application Software Platform | API (C++, C#) development kit (can be customized) |
Mechanical Specifications | |
Indicator | Buzzer and LED (Power, Antenna, Reading/Writing) |
| IP Rating | IP54 (If using a waterproof housing, can reach IP65) |
Power Consumption | 2W(Standby), 10W(Working) |

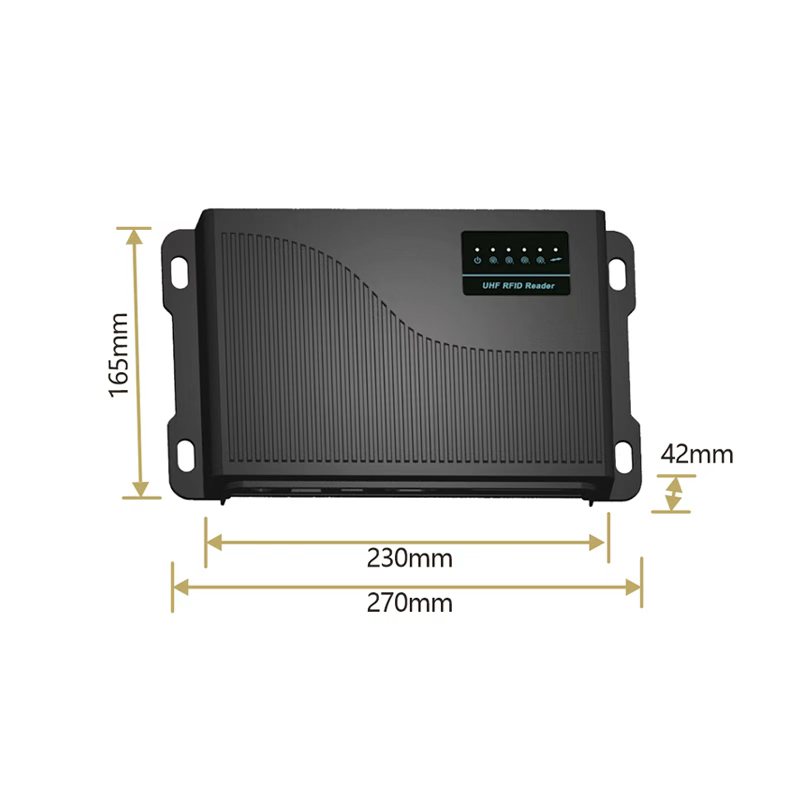

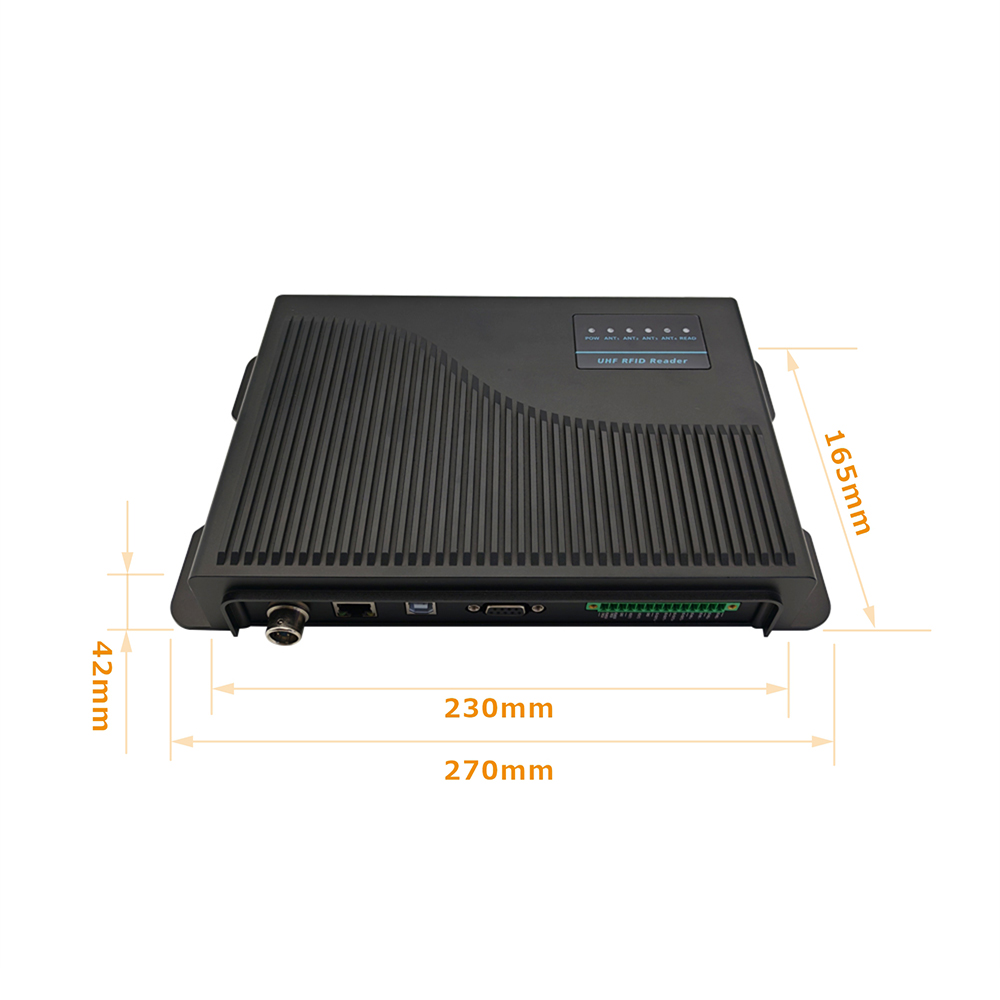

| Product Dimension | 270mm×165mm×42mm |
| Package Dimension | 335mm×226mm×133mm |
| Net Weight | 1.40kg |
| Gross Weight | 2.21kg |
Operating Temperature | -40℃ ~ +60℃ |
Storage Temperature | -60℃ ~ +80℃ |
Humidity | 5% ~ 95%(non-condensing) |
Our Services
- Wondering if our RFID Solutionscan suit you? Finding out is simple.
- We are offeringfree testing on your sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.

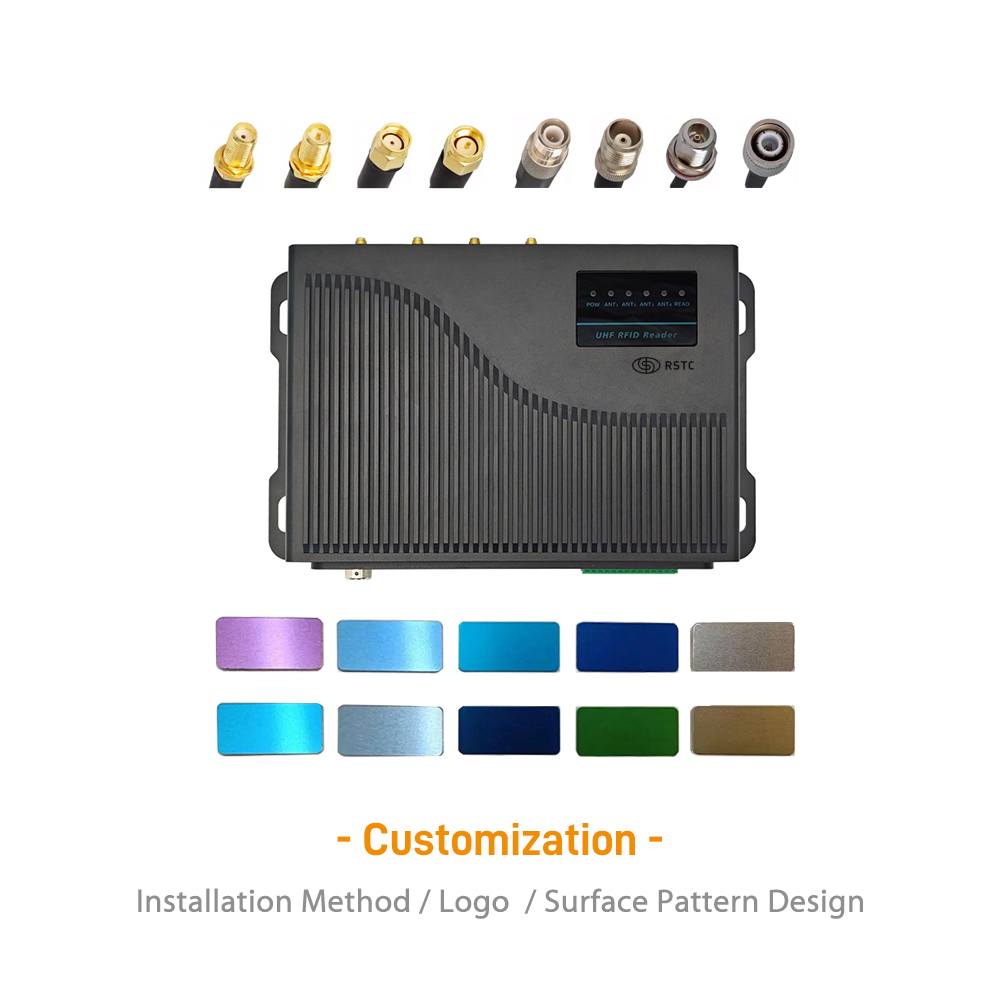

- We provide personalized customization services, such as printed logo, software and hardware customization etc.
