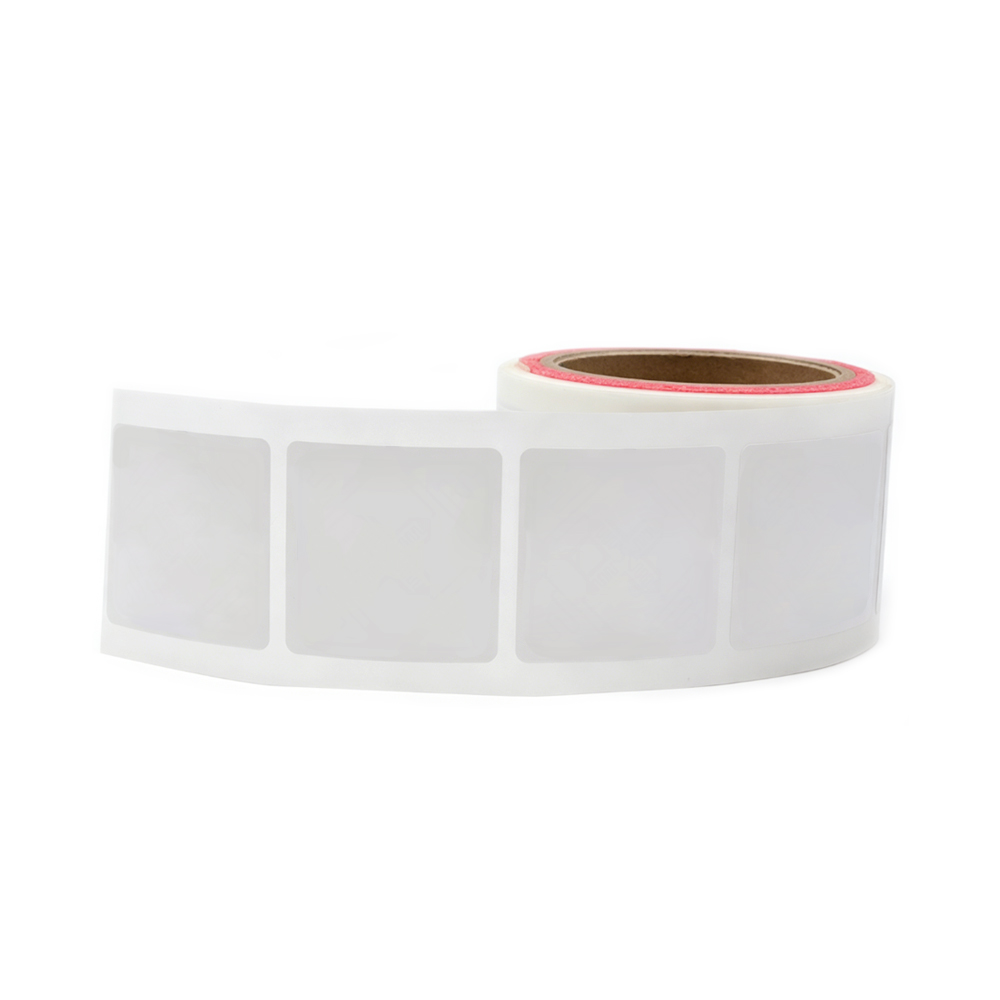

RS-PT5050 RFID UHF EPC Gen2 Label
RS-PT5050 is a versatile, high-performance tag designed for a wide range of applications. It delivers reliable reading performance across supply chain
management, inventory control, logistics, retail and apparel.
The product is complied with EPC global Class 1 Gen2, ISO 9001 quality management and ISO 14001 environmental management standards, ensuring
reliable, industry-grade performance for diverse use cases.
Specifications
Physical Features: | |
Material: | Coated Paper |
Dimensions: | 50 x 50 mm / 1.97 x 1.97 in |
Working Temp: | -40°C to 85°C / -40°F to 185°F |
Storage Temp: | 23±3℃ |
Storage Humidity: | 20±5℃, 50±10% RH, Store away from sunlight |
RFID Features: | |
RFID Standard: | ISO/IEC 18000-63 Type C |
Chip Type: | NXP UCode 9 |
Memory: | User – NA; EPC – 96 bits; TID – 96 bits |
Read Range(Fixed Reader): | FCC: > 10.0 m, on cardboard; > 8.0 m, on PTFE ETSI: > 10.0 m, on cardboard; > 9.0 m on PTFE |
Other Features: | |
Data Storage: | >10 years |
Re-write: | 100,000 times |
Installation: | Adhesive on clean & dry surface |

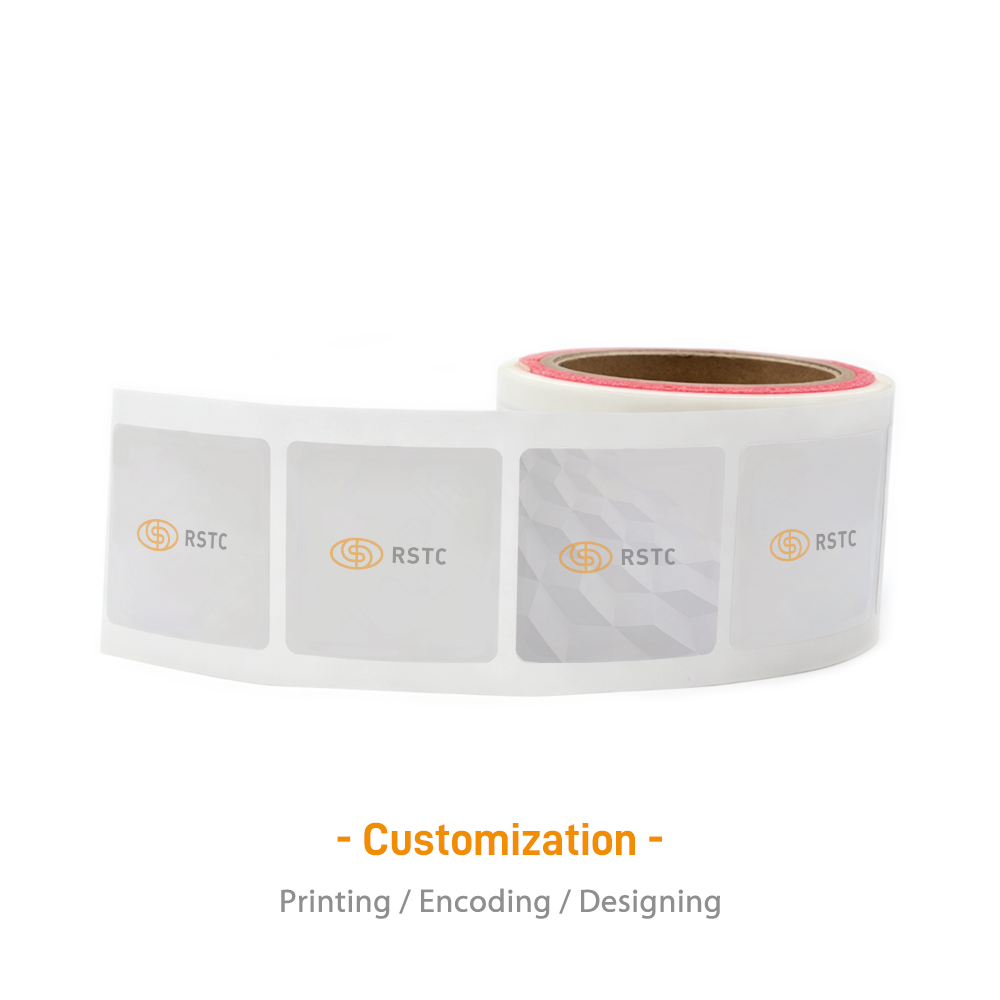

Customization: | Logo, barcode/QR code, number printing, encoding, antenna design, etc. |
Package:
| 2,500 pcs / roll, 4 rolls / box |
Application: | Warehouse management, road automatic toll collection, access tracking, inventory taking and material counting |

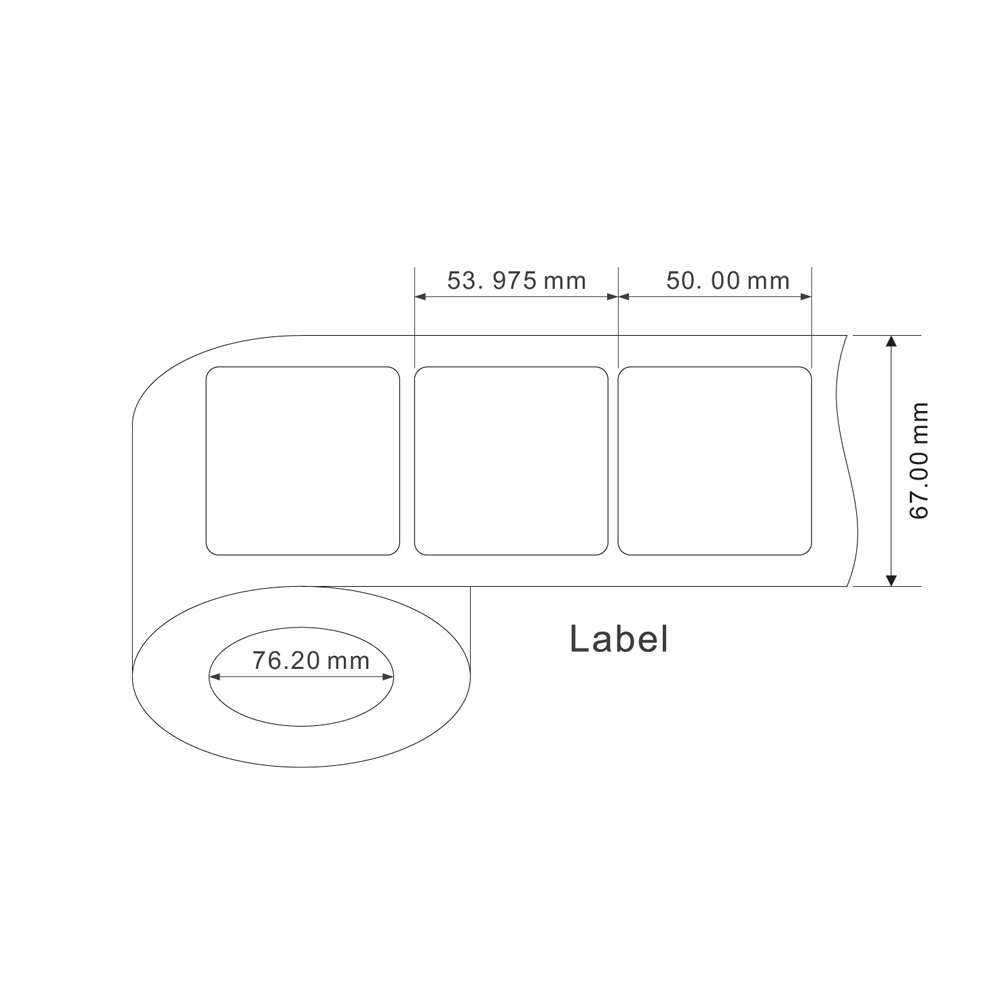

Dimensions
Applications
 |  |
 |  |
