RS-PI09LA01 Middle Range UHF RFID Integrated Reader With Built-In 9dBi Linear Polarization Antenna
RS-PI09LA01 is middle range UHF integrated reader with built-in 9dBi linear polarization antenna, reading range up to 10 meters, portable and user-friendly, widely used asset tracking, production line, warehouse, logistic management, vehicle and personal management.
Functions
- 902-928Mhz FCC, 866-868Mhz CE, equipped with 9dBi Linear antenna
- Support standard RS-232, 10M/100M Ethernet interfaces
- Build in Indy R2000 RFID Chip, fast and accurate reading rate
- PoE optional
- Multi-reader operating under intensive environment
- Upgrade firmware online
Applications
- Warehouse, logistics, supply chain management
- Asset management, personnel attendance management
- Vehicle parking access control, intelligent weighing
Specifications
RF Parameters | |
Operating Frequency | 902 – 928MHz, 865 – 868MHz, RF band customized (optional) |
| Frequency Hopping | FHSS or Fixed Frequency |
Output Power | +20dBm ~ +30dBm@50Ω load, 1dBm each step |
Antenna | Built-in 9dBi Linear Polarization antenna |

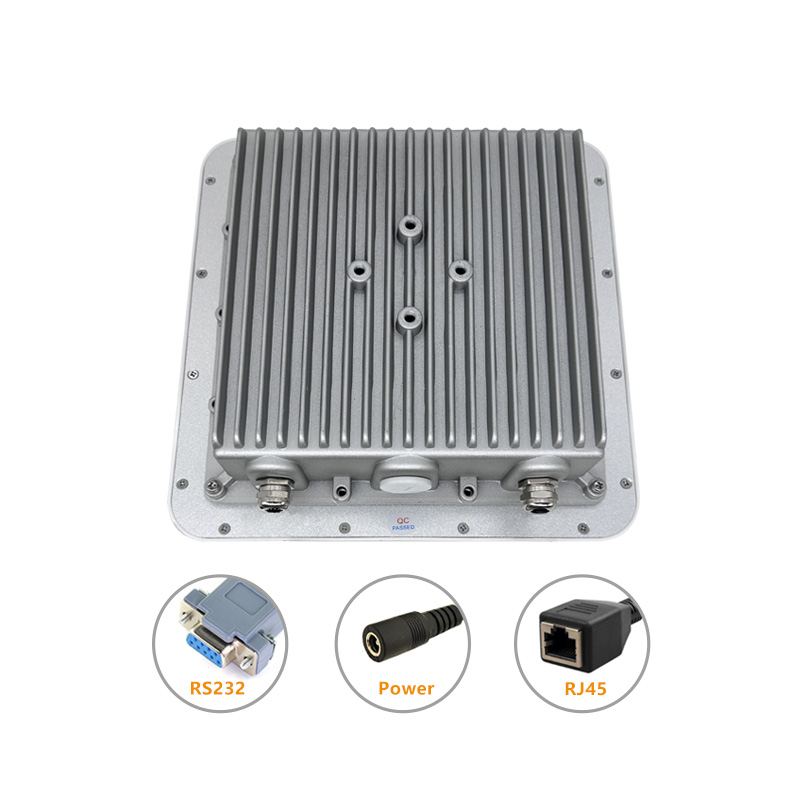

Communication Interfaces | RS-232, RS-485, 10M/100M Ethernet interfaces |
Optional Interfaces | Wiegand 26/34 |
Firmware Update | Ethernet |
Application Software Platform | API (C++, C#) development kit (can be customized) |
Tag operation | |
Tag Protocol | EPC Class 1 Gen 2 (ISO18000-6C) |
Reading Range | 0~10m (depends on antenna configuration) |
Writing Range | 0~3m |
Mechanical & Electrical performance | |
Indicator | Buzzer, LED (Power, Antenna, Read) |
Product Dimensions | 260mm x 260mm x 100mm (excluding stand) |
Package Dimensions | 400mm×310mm×120mm |
Net Weight | 2.25kg |
Gross Weight | 3.39kg |
IP Rating | IP65 |
Power | DC 12V input, power adapter |
| Power Assumption | 2W(Standby), 10W(Working) |
Operating Temperature | -40℃~+60℃ |
Storage Temperature | -60℃~+80℃ |
Humidity | 5% ~ 95% (non-condensing) |
Our Services
Wondering if our RFID Solutions can suit you? Finding out is simple.
- We are offering free testing onyour sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.

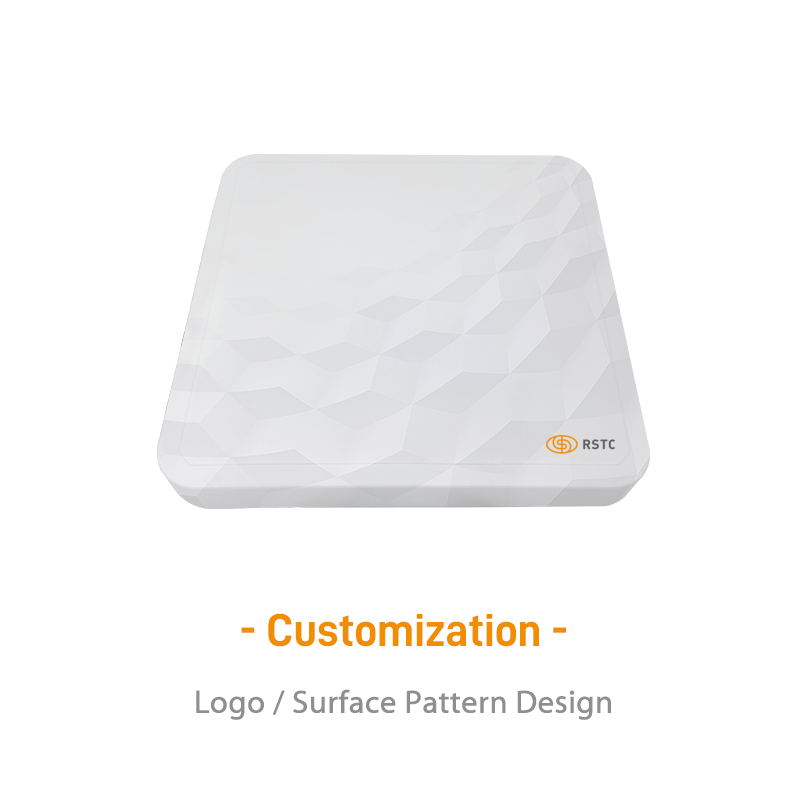

- We provide personalized customization services, such as printed logo, software and hardware customization etc.
