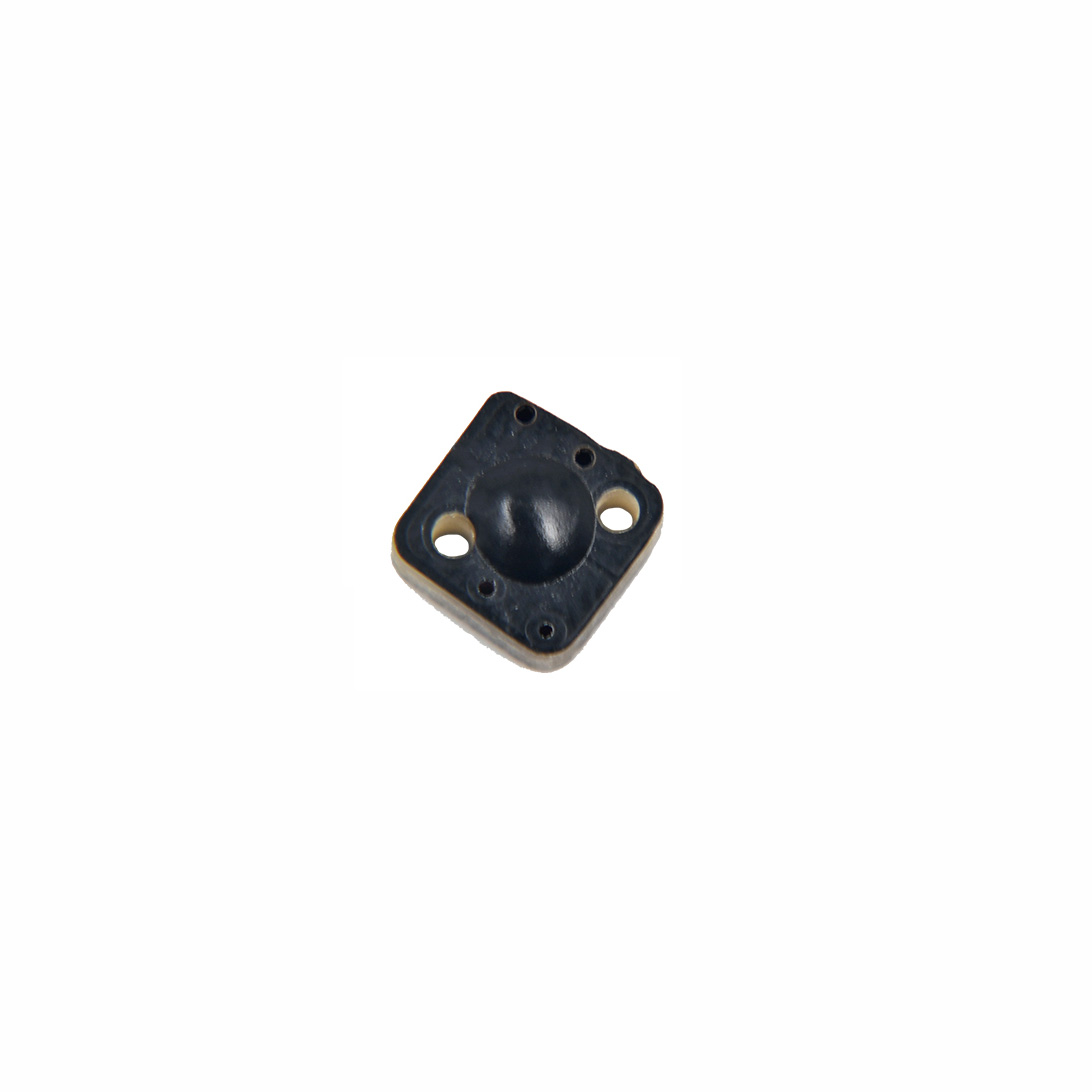

RS-PT13 Small UHF PCB On-Metal Tag
RS-PT13 Small UHF PCB On-metal Tag is constructed with FR-4 materials with IP68 rated, it is high reliability and durability suitable for in all types of environments including outdoor. waterproof, strong acid, strong base, suitable for small metallic asset tracking.
Parameters
Physical Features | |
Material | FR-4 |
Dimensions | 6×6×3mm |
Color | Black |
Weight | 2.0g |
Working Temp | -40~ +85℃ |
Survive Temp | -40~+150℃ |
IP Rating | IP68 |
Humidity | 98% Non-condensing |
RFID Features | |
RFID Standard | EPC Global UHF Class 1 Gen 2/ ISO 18000-6C |
Chip Type | NXP Ucode 8 |
EPC Memory | 128 bits |
User Memory | 96 bits |
Read Range(Fixed Reader) | FCC:8.8m,on 15x2cm metal; 3.8m,on 14x14cm metal |
Read Range(Handheld Reader) | FCC:7.4m,on 15x2cm metal; 2.3m,on 14x14cm metal |
Other Features | |
Data Storage | > 10 years |
Re-write | 100,000 times |
Installation | 3M adhesive, Rivet, Magnet |
Customization | Printing Logo, Serial number, Encoding, Designing, etc |
Application | ● IT asset management ● Inventory management ● Metallic Asset management ● Automotive component tracking, etc |
Read Range on metal
Dimensions
Applications
 |  |
 |  |
