RS-PT157 97×25UHF Fragile Windshield Label
The UHF Windshield Label is engineered specifically for glass surfaces, delivering excellent read performance when applied to vehicle windshields, windows, and other transparent substrates. The Label is a tamper-evident, destructible RFID label designed to prevent reuse and protect product authenticity. Once applied, the label’s fragile structure ensures that any attempt to peel it off will destroy the inlay and antenna, making the tag permanently unreadable.
Applications
- Car Parks
- Gated communities
- Office
Specifications
Physical Features | |
Material | PET |

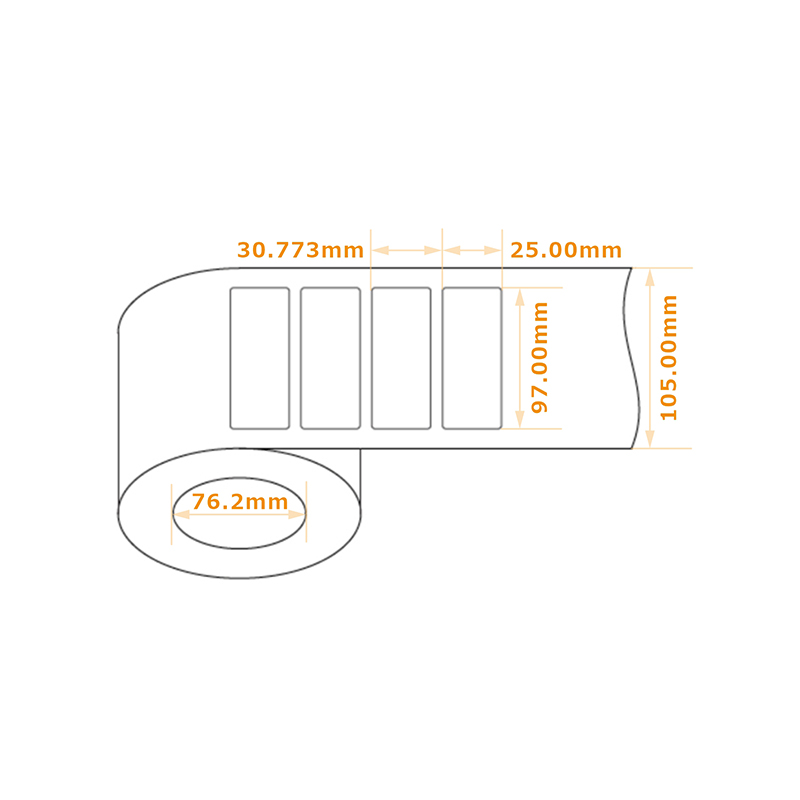

Dimensions | 97×25 mm / 3.82×0.98 in |
Operating Temp | -40~ +85℃ / -40°F to 185°F |
Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight |
Adhesive | Double-sided tape |
RFID Features | |
Frequency | 860-960 MHz |
Application | Non metal |
Chip Type | Impinj Monza 830 |
Memory | User – N/A; EPC- 128 bits; TID – 96 bits |
Data Storage | > 20 years |
Re-write | 100,000 times |
Other Features | |
Installation | Adhesive on clean & dry surface |

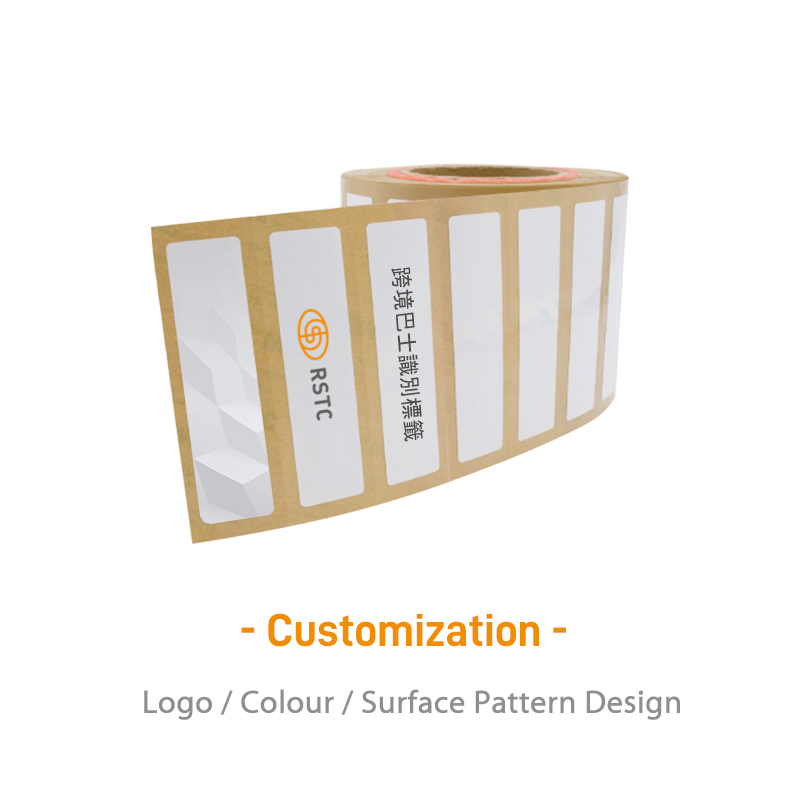

Customization | Printing, Encoding, Designing, etc. |
Package | 2,500 pcs / roll, 4 rolls / box |
Read Range (2W ERP)
Radiation Pattern
